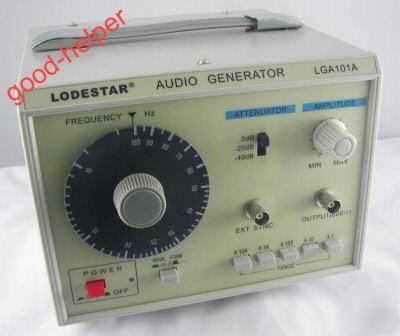

New audio signal generator products
Frequency rang from10Hz to 1Mhz selectable in 5 ranges are
calibrated with single -scale graduations.
More than 5V rms at no load and more than 2.8V rms on 600
loading (sine Wave). Output level can be adjuster by a 10dB-step,6
range attenuator and a level adjuster.
Sine Wave and square waves is available.
Output Voltage :5V rms or more
output Distortion :400 Hz - 20KHz, 0.1% or Less
Output Flatness : 1.5dB (refer to 1KhZ)
Output Voltage :10V p.p or more
Duty ratio :50% 5% (refer to 1KHz)
Input Impedance : 10K Approximate
Attenuator: 0dB,-20dB, -40dB in 3steps (assuracy 1dB at 600 Load)
