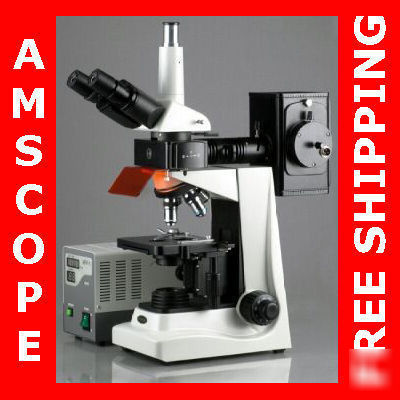

New epi - fluorescence trinocular compound microscope –
Brand Name: AmScope Model No: FM300 Retail Value: $8,000
* A Great EPI-Fluorescent and Transmitted Bright-Field Microscopy System
* Four High Quality Fluorescent Plan DIN Objectives: FLUOR 4X, 10X, 40X & 100X
* Four High Quality Achromatic Objectives: 4X, 10X, 40X & 100X
* Eight Magnification Levels: 40X-64X-100X-160X-400X-640X-1000X-1600X
* 100W Fluorescent Light Source
* 100W HBO Ultra Hi-Voltage Spherical Mercury Lamp
* High Contrast EPI-Fluorescent Images
* Blue and Green Exciting Light and Ordinary Light Filter System
* Three-Position Fluorescent Filter Slider Assembly for Blue, Green, and Brightfield Microscopy
* 220V/110V (Interchangeable) External DIGITAL Power Supply (100W DC)
* Easy Control Design for Centering Arc of the Mercury Lamp
* Three-Setting Fluorescence Excitation Light Path Control Dial: No Light, Partial Light, Full Light
* Ultraviolet-Light-Free Front Light Baffle
* Kohler Illumination System with Field Diaphragm for Lighting Control
* Intensity-Variable Transmitted Halogen Lighting System
* Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
* Large 3-D Double Layer Mechanical Stage
* Dual Side Coaxial Coarse and Fine Focusing Control
* Durable Cast Alloy Frame & Stand with Stain Resistant Enamel Finish
* Four Plan Achromatic DIN Objectives
* Two Sets of Wide Field Eyepiece: Wide Field 10X (18mm Field of View) and P16X
* 30 Inclined, 360 Swiveling Compensation Free Trinocular Head
* Large Double Layer Mechanical Stage with Stain Resistant Finish
* Upward Stage Stopper to Protect Objectives and Slides
* Abbe Condenser with Iris Diaphragm & Swing-in Color Filters
* Built-In Variable Halogen Illumination System with Intensity Control
* A Wide Range of Accessories Available Including Phase Contrast and Darkfield Condensers
* Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
* Head: trinocular anti-mould viewing head inclined at 45 degree
* Wide Field Eyepiece: WF10X (18mm Field of View), P16X
* Fluorescence DIN Objectives: FLUOR 4X (0.10 NA), 10X (0.25 NA), 40X (0.65 NA, Spring) & 100X (1.25 NA, Spring, Oil)
* Achromatic DIN Objectives: 4X (0.1 NA), 10X (0.25 NA), 40X (0.65 NA, Spring), 100X (1.25 NA, Spring, Oil)
* Illumination: halogen bulb, 6V/20W
* Power Supply: 110V and 220V, CE certified
* One Trinocular Compensation-Free Head
* Four Fluorescence DIN Objectives, FLUOR 4X, 10X, 40X and 100X
* One Complete Set of Fluorescence Kit
scope. We provide immediate support for any issues regarding your microscope. We are just a phone call away. Please call our toll free number WE HAVE
Accessories listed below are compatible with above microscope. They can boost the microscope with the extra features. Click on the items you are interested in for detail or purchase.
