Nsk nakanishi air line kit al-951 nc / cnc lathe
Nsk Nakanishi Air Line Kit AL-951 NC / CNC LATHE
-AL-951 Air Line Kit; Air Filter Air Regulator Air Pressure Gauge Lubricator Solenoid Valve (DC 24V) : 2pcs. Buzzer (DC24V) Air ON-OFF Valve Hose for Piping (K-260) : 6 ft Lubricating Oil (K-211)

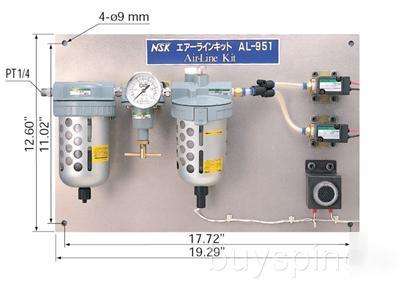

The AL-951 is equipped with a filter, a regulator and a lubricator as a set that is required when installing air motor on a NC lathe. In addition, two solenoid operated valves (DC 24V), which can be controlled by M-codes from NC device, are assembled and two air motors can be operated at the same time. Auto-drain mechanism works automatically when stagnant water is frapped in the air filter. Alarm buzzer is also assembled in the lubricator to warn low of lubrication oil. As an option, additional solenoid operated valve can be installed to operate three air motors at the same time.
Air Line Kit (For 6 mm Hose Filter Mesh 5 m)
