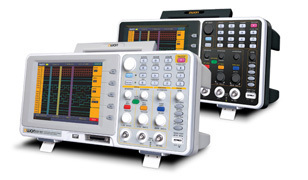

Owon MSO7102T mixed la digital storage oscilloscope
25MHz 100MHz Bandwidth, up to 500MS/s real time sample rate
16 optional logic input channels
Max 6000 points record length for each channel
Dual channels + External trigger + Logic Analyzer
7.8 inch color LCD display for large view
Support USB data transmission, display by real-time
Advanced trigger functions: Edge trigger, Bus
trigger, Pattern trigger,Sequential queue trigger,
Distributed queue trigger and Data width trigger.
7.8 inch color LCD, 256 colors, STN/TFT screen, 640 480 pixels
5ns/div-5s/div step by 1-2.5-5
5ns/div-100s/div step by 1-2-5
Interval( T)accuracy(full bandwidth)
Single (1 interval time+100ppm reading+0.6ns)
Average>16 (1 interval time +100ppm reading+0.4ns)
8 bits resolution (2CH simultaneously)
300V(DC+ AC Peak) (1M input impedance,Probe Attenuation rate 10:1)
1M 2% in parallel with 20pF 5pF
1M 2% in parallel with 15pF 3pF
Edge Video Alternate Mains supply
Normal, Peak detection, Average
Max. 6000 points on each channel
PK-PK, Average, RMS, Frequency, Period.
Edge trigger, Bus trigger, State trigger, Data alignment trigger, Data width trigger
Pre-trigger, mid-trigger, Post-trigger
Binary system, Decimal system, Hex
Weight : full package( Oscilloscope+16 channels logic analyzer & accessories)=5kg
