Heathkit id-22 electronic switch dual channel s-3 upgrd
Heathkit ID-22 Electronic Switch Dual Channel S-3 upgrd

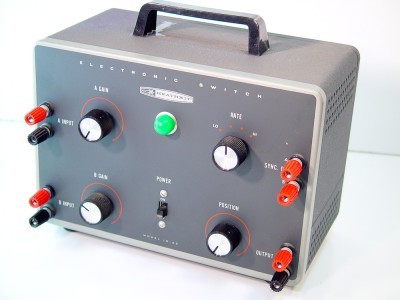

Vintage HEATHKIT electronic switch ID-22
This vintage switch looks unused. It has a few storage marks and some dust, and is otherwise pristine! Bench tested good. Please click on the photos to enlarge for more detail. The item in the photos is the item you will receive.
The Electronic Switch ID-22 came on the market in 1964 and was produced until 1970. It was the successor of the S-3 that came on the market in 1956. There are only minor differences between the S-3 and the ID-22. In 1971 the ID-22 was replaced by the ID-101. The ID-22 makes the oscilloscope dual channel.
* All-electronic switching circuit no moving parts
* Broad frequency response actual signal gain through circuit
* Will function at signal levels as low as 0.1 volt
* Convenient location of controls and terminals
Oscilloscope owners will appreciate the fine advantages provided by the Heathkit, in permitting simultaneous observation of two signals on the scope screen.
This heathkit will accommodate two signals and alternately produce either one to the output terminals. The alternation of one signal to the other may be made at any of four switching rates selected by a panel switch. Switching rates are approximately 150, 500, 1500 and 5000 cycles determined by four wide-tolerance condensers. A rate can be selected that is harmonically different from the signal frequency to prevent both the signal and the switching pulse from appearing statically on your scope screen.
The circuit employs seven miniature tubes which also provide gain for the input signals. Circuit will function at signal levels as low as 0.1 volt. Frequency response is 1 db from 0 to 100 kc. A position control is provided so that the traces may be separated or made to superimpose on each other on the oscilloscope screen for comparison purposes. Separate gain controls are provided for each channel as well as sync output terminals to lock the oscilloscope sweep or time base to the signal frequency. The output terminals are shunted by a condenser to reduce switching transients. All controls are located on the front panel as well as the input and output terminals utilizing the Heath five-way binding post. The S-3 is easy to build with clear instructions provided and is a pleasure to use.
* Switching Rates: Approximately 150, 500, 1500 and 5000 cycles.
* Signal Frequency Response: 1 db 0-100 kc.
* Input Impedance: 100 Kohm control.
* Output Impedance: 1000 ohms shunted by 1000 uuf.
* Maximum Signal Output: 25 volts peak-to-peak.
* Maximum Signal Gain: 5 times.
* Tube Complement: 2-12AX7, 3-12AU7, 1-6C4, 1-6X4.
* Power Requirements: 105-125 V, 50-60 cycles AC, 30 watts.
* Dimensions: 9 " wide x 6 " high x 5" deep.
