Automation direct plc DL06 D0-06DD1 (bad 2ND com port)

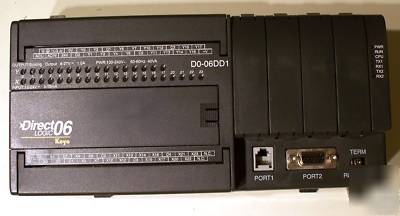

Automation Direct PLC DL06 D0-06DD1 20DC/IN 16DC/OUT AC ((PLEASE NOTE: Something is wrong with Port 2, the RX2 LED is solid... I have cleared the memory and settings but the LED is still on, everything else is in perfect condition))
D0-06DD1 (DL06 20 DC IN / 16 DC OUT MICRO PLC W/AC P/S)
DL06 CPU, 20 DC in / 16 DC out, 110/220 VAC power supply, with 0.3A 24 VDC auxiliary device power supply. 14.8K words total (7679 words ladder - flash, 7488 words V-memory), RLL/RLLPLUS programming (DirectSOFT32 Version 4.0 or higher), two built-in RS232C communication ports. Secondary communications port supports RS232C/RS422/RS485, DirectNET Master/Slave, MODBUS RTU, Master/Slave, and ASCII In/Out. Inputs: 20 DC inputs, 12-24 VDC current sinking/sourcing, 5 isolated commons (4 inputs per common). First 4 inputs are configurable in one of several high-speed I/O features such as 7KHz counter input, pulse catch input, or interrupt input (not available when using pulse output). Outputs: 16 DC outputs, 12-24 VDC current sinking, 1.0A/point max., 4 commons non-isolated (4 points per common). 2 outputs are configurable for independent CW/CCW pulse train output or step and direction pulse output up to 10kHz (0.5A/point) (not available when using high-speed inputs). Four option slots available for I/O or communication modules.
