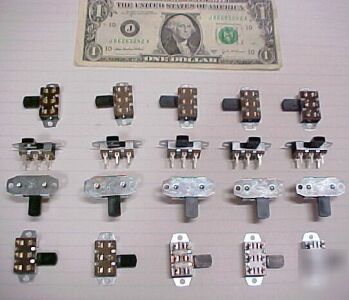

Lot 20 cw sydewynder dpdt slide switches, gg-350-3010
These were purchased at an electronics store liquidation earlier this year, and they were brand new in the original factory boxes until we rebagged them for resale. Operation is two position / retained (stays where you put it).
Stamped on the switch housing:
Body length (excluding mounting ears): .880"
Thickness (excluding connector pins): .340"
Pin spacing (both length and width): .320"
Mounting holes: .132" (#6 machine screws) spaced 1.125" OC (on centers)
http:// /SwitchPDFs/Catalog2/SydeGG350PC.pdf
(10 to 12) lots: Four pounds
(13 to 16) lots: Five pounds
