Lpm inc. lift truck brush set p/n 4996492 nos in box

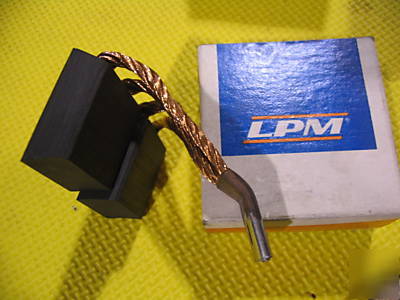

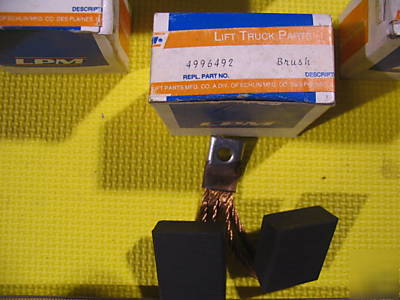

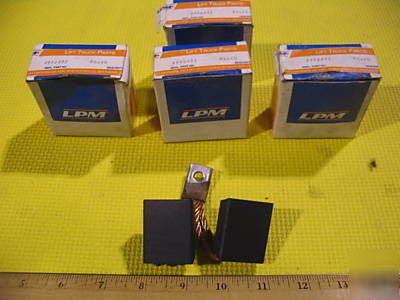

New Old Stock. LPM, Lift Parts Mfg. Co. div of Echlin Mfg Co. Lift Truck Carbon Brushes for D.C. Motor. New in original box, LPM P/N 4996492 brush set. 1 set of 2 Carbon Brushes in original box. The two brushes are crimped to a common heavy duty copper lug, each brush has 2 braided copper wires (about 1/8" dia wire) that are crimped and soldered to the lug. From brush face to center of the lug mounting hole is approx. 4 1/2". Lug is 3/4" wide by a little over 1/8" thick and about 1 1/8" long with an approx 1/4" bolt hole. Brushes are 5/8" thick by 1 1/4" wide and 1.58" long. These are Heavy duty high amperage brushes. I don't know what lift truck these fit. These were in a spare parts box from a local company that has relocated.
