Lucas schaevitz rotary variable transducer rvit-15-60
Manufacturer: Lucas Schaevitz Stock #: 2010050034

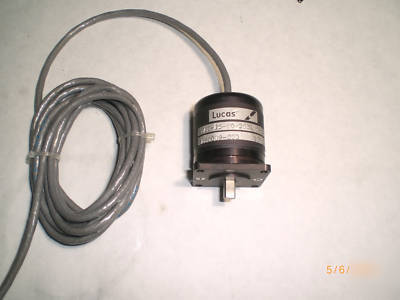

Description: This sale is for one Lucas Schaevitz noncontact rotary transducer, 5 vdc nominal input, +/-3 vdc output at +/- 60 degree rotation. Aerospace or instrument grade. With optional 4 hole mounting flange. This is a really nice instrument grade rotary transducer with almost infinite resolution and life.
* Noncontact - almost infinite life
* Almost infinite resolution
* Wide temperature operating range
* Extremely versitile. Can be used for applications where you need to convert +/- 60 degrees of rotation into a linear voltage output. Robots, aerospace, RDF, you name it.
* Light weight-weighs only 10 ounces.
* Very small - body length (approx) 1.75 inches and 1.5 inch in diameter. Has 1/4 inch diameter shaft with flat that extends about 3/8 inch from the mounting flange.
* Has the optional 4 hole mounting shaft making it easy to mount or remove
* 3 wire output cord 96 inchs long (+/- inch or so).
* RED wire - 5 VDC input, BLACK wire - Common, WHITE wire - Output, It's that simple.
* Operating temperature from -13 to 185 degrees F.
* Available new from Digi-Key for $346.
Condition: Used, excellent condition.
Qty: 1 transducer with mounting flange
Returns: Guaranteed good - please see our return policy for this item.
