> New tektronix P6205 10X 750 mhz active fet probe nice
New tektronix P6205 10X 750 mhz active fet probe nice

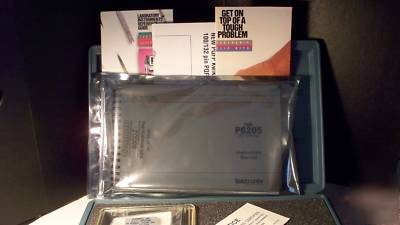

IT IS BRAND NEW IN ORIGINAL FACTORY CASE WITH ALL ACCESSORIES AND PAPERWORK MANUALS ETC.SEALED

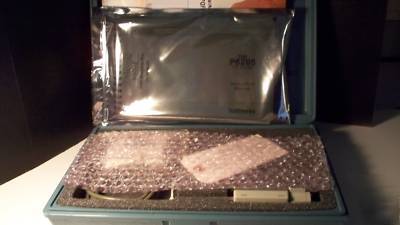

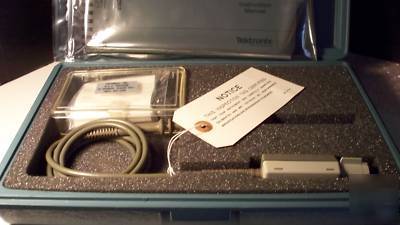

THE ITEM IN THE PICTURE IS EXACTLY THE ITEM YOU WILL RECIEVE
IT IS BRAND NEW UNUSED IN PERFECT WORKING CONDITION

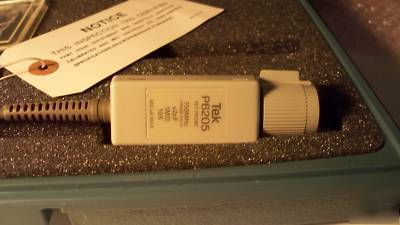

the item in the picture is exactly what you will recieve
PLEASE!! CONTACT ME FOR ANY QUESTIONS
* Integral Probe Power TEKPROBE BNC
* High-speed Digital Systems Design
* MOS: CMOS; FastCMOS; BiCMOS; TTL
* Component Design/Characterization
* Propagation Delay and Timing
* Bandwidths and Rise Times
* Manufacturing Engineering and Test
Active FET Probes for TEKPROBE BNC Interface
Tektronix P6205 Probe is part of Tektronix' line of Low Circuit Loading Signal Acquisition probes for CSA (Communications Signal Analyzers), DSA (Digitizing Signal Analyzers), 11000 Series and the TDS Family of Oscilloscopes.
The P6205 is designed with FET devices for its inputs, which allows very high input resistance values and low input capacitances.
Both Active FET probes provide a wide linear dynamic input range for accessing most digital device families using today's logic voltage levels.
Power for the P6205 is supplied by the CSA, DSA, TDS and 11000 Series mainframes through the TEKPROBE BNC Interface, eliminating the need for extra cabling and/or external power supplies.
Probe information such as type, serial number, attenuation factor, offset scale factor, input resistance and termination resistance required is communicated through the TEKPROBE Interface between the Active Probe and the CSA, DSA and 11000 Series mainframes. This information is used by these oscilloscope mainframes during the scope initialization sequence and measurement analysis.
* Low Input C, High Input R Minimizes circuit under test loading
* Probe Power Directly from CSA, DSA, TDS or 11000 Series TEKPROBE BNC Interfaces - Means no additional cables or power supplies required*1
* Readout Coding for 10X Attenuation Reduces confusion and errors in measurement readings
* Gold-plated Replaceable Probe Tips Improved electrical connections and lower maintenance costs
* Miniature Size Accessories Provides wide range of circuit attachments
* Nominal Cable Length: 1.5 m
* Bandwidth at -3 dB: 750 MHz
* Linear Dynamic Range: 10 Volts
* DC Offset Range in Volts: NA
* Max. Voltage in Volts (DC + pk AC): 40
* Interface/Readout/Identify*1 : TPB/Y/N
* Recommended Instrument: 11000*2, TDS400, TDS500, TDS600, TDS700, TDS3000, TDS5000, TDS7000
