Plug-in Bread Board Dual Power Supply

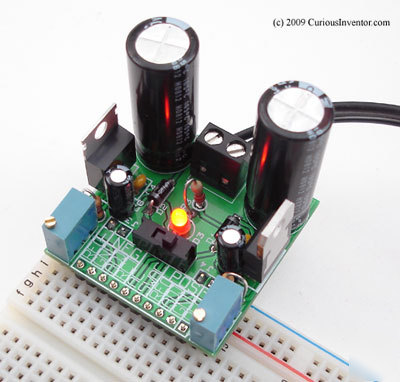

This kit provides adjustable +- DC voltage to bread boards, just attach an inexpensive AC transformer. Both + and - voltages can be finely adjusted with a trim pot. Great for audio op-amp circuits.
Download assembly instructions
* Both + and voltages are independently adjustable
* With proper heat sinking and a sufficiently strong AC adaptor, over 1 amp can be supplied to each side. Choose an AC adaptor with at least 30% more AC voltage and amperage than the DC requirements.
* Fits in most bread boards with Elenco-brand spacing, but can also work in others by leaving off the two, 2-pin support headers.
* Overhands board to provide maximum prototyping space.
Please contact support [at] CuriousInventor.com if there are any missing parts or questions.
