Sure first ram type sinker type emd machine machine

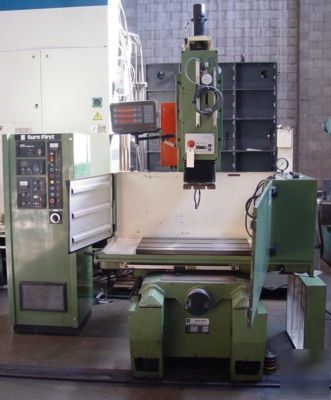

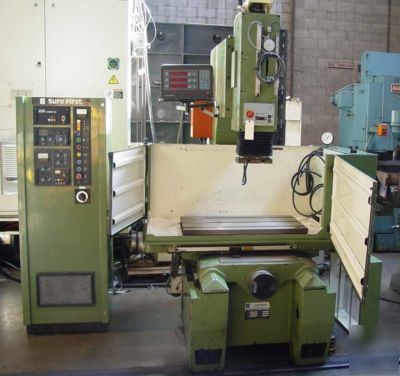

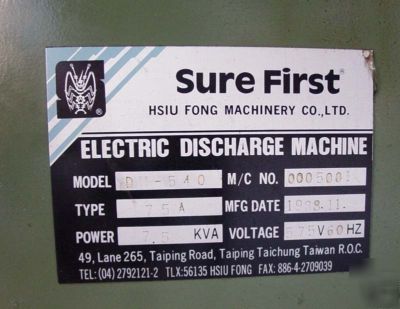

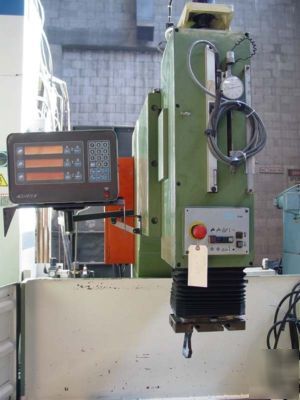

SURE FIRST 75 AMP RAM TYPE ELECTRIC DISCHARGE MACHINE

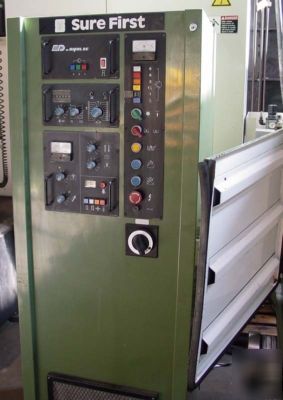

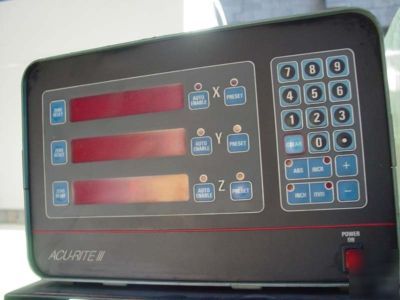

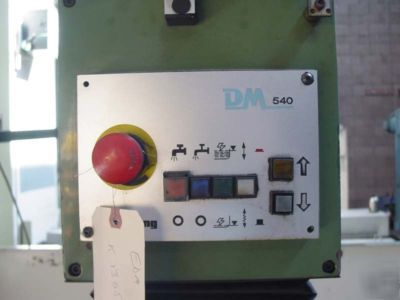

Model DM-540, New 1988, Stock# K13059 EQUIPPED WITH: Bipulse 75 Amp Single Lead Solid State Power Supply, Accurite Digital

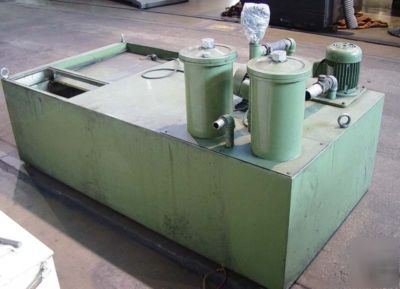

Readout System,Auto Retract, Simple Servo Down Feed, 210 Gallon
Dielectric Reservoir. CATALOGUE SPECIFICATIONS:

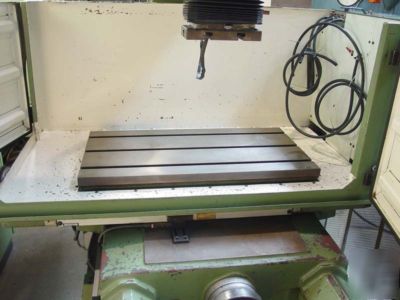

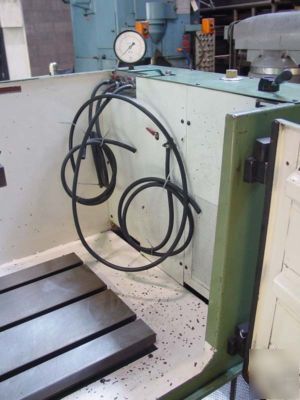

Tank Size (Inside Dimensions)....................... 47"x27"x18"

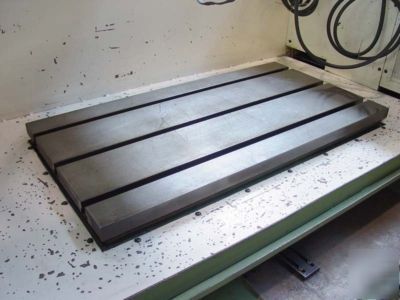

Table Working Surface............................... 33.5"x 17.7"
Table Longitudinal Travel........................... 19.7"
Table Cross Travel.................................. 15.7"
Table Workload Capacity............................. 3,960 LBS
Platen Size......................................... 10"x 15"
Ram Travel.......................................... 7.9"
Quill Travel........................................ 7.9"
Throat Depth........................................ 22.25
Platen To Top of Table Maximum...................... 25.4"
Platen to Top of Table Minimum...................... 9.6"
Electrics............................................. 220/440/575/3/60
Approximate Machine Dimensions (Without Power Supply). 67"x 75"
Approximate Machine Height............................ 84"
