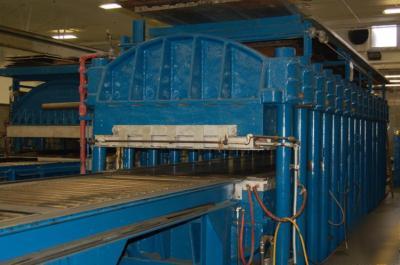

1,200 ton farrel hydraulic lamanation / molding press
1-USED 1,200 Ton FARREL Hydraulic Lamination / Compression Molding Press; Up-acting Type; 10 Post Arrangement;
Capacity.............................................. 1,200 Ton @ 2,000 P.S.I.
Bed Area............................................... 83" L-R x 120" F-B
Platen Size............................................ 77" L-R x 120" F-B
Distance Between Posts....................... 83" L-R x 18" F-B
Stroke of Ram (Slide)......................... 18"
Daylight Opening .............................. 60"
Distance Floor To Ram...................... 36" (with 38 deep press pit)
Main Ram Diameter (10 each)........... 12" (nominal)
Advance (close).................. 30 In/min (nominal)
Pressing (close).................. 7 In/min (nominal)
Return (open)..................... 40 In/min (nominal)
Hydraulic System........................... 15 HP Racine Mdl. BOQ 01702 Rated @ 3500 P.S.I. @ 35 GPM @ 1200 RPM
Electrical Characteristics................. 240/480 VAC / 3 Phase / 60 Cycles
Type of Platen ............................... Steel / Drilled / Ported
Complete Electrical Controls w/Operators Station
2 ea. 12 (nominal) x 77 x 120 Cast Iron Bolster Plate/Riser Blocks
2 ea. 3" (nominal) x 77" x 120" Heated Platens
Complete Hydraulic System With 500 Gallon Dual Reservoir Capacity
Optional Extra Heated Platens Available
Overall Dimensions: 10' F-B x 8' L-R x 12' Height (est)
Price: $112,000.00 ..........................................................F.O.B................. Casa Grande, Arizona
