2-stage rotary vane vacuum pump 29"hg 2CFM 200W ac hvac
2-Stage Rotary Vane Vacuum Pump 29"Hg 2CFM 200W AC HVAC

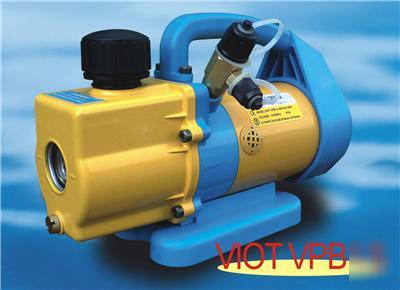

You are looking at a BRAND NEW 2-STAGE DEEP VACUUM PUMP
model: VPB1.5; single phase 110 VAC; double(2) stage rotary vane VACUUM PUMP; 1.58CFM, 200 Watt
a great gift idea for a man or woman in HVAC service!
* Aluminum ALLOY CASING: Alloy casing,
* Japanese design, Very light in weight, less than 10 lb, take it any where(say, rooftop) and get the job done.
* Double(2)-Stage Rotary Vane Vacuum Pump
* Direct drive motor allowing easy starting and is maintenance free.
* Elastomeric coupling between the motor and pump results in quiet running and good performance.
* FORCE FED LUBRICATION Provides clean, filtered oil to all internal bearings and wearing surfaces regardless of the pump operation. Cleaner oil reduces ware and break downs.
* Great pump for HVAC jobs, bell jar/desiccator evacuation, jewelry gluing jobs, or any thing light(non-continuous) duty jobs. this pump bring water to boil at room temperature easily, but this pump is NOT designed for molding work or industrial, continuous heavy duty jobs. DO not use this pump for over 1 hour at max vacuum.
* Oil drain valve positioned at bottom of oil reservoir.
INTAKE PORT: 1/4 inch SAE, and 3/8 inch SAE flair
MAX VACUUM: 38 micron or 0.05 mbar absolute pressure(more than 29.9 in Hg vacuum)
* Come with 1 bottles of vacuum oil, just dump it in, you are ready to go!
* Power cord come with the pump; power switch on the pump too.
User manual Down Load: click here now! http://viot.us/showmanual.php?model=VPD5
Frequently Asked Questions: http://viot.us/showFAQ.php?model=VPD5&sw=0
