960 oz/in nema 34 stepper motor for cnc mill or router.

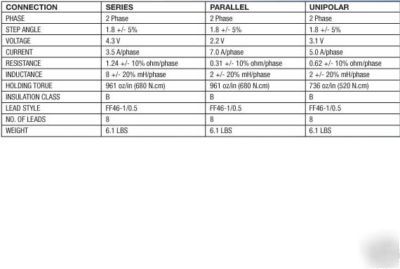

960 oz/in motor with a Nema 34 mounting flange.
Single or Dual Shaft available.
* Extremely high power to weight ratio
* Superior linearity (better microstep accuracy)
* Less torque drop at upper speeds
Our step motors feature an improved stator design wherein geometries are altered for greater torque output than other 2-phase step motors of comparable length.
The exceptional static torque profile makes it possible to use shorter motors than before in a given application. Since shorter motors inherently produce better speed vs. torque characteristics due to lower resistance and inductance, the net result is an ability to push same loads at higher speeds or higher loads at same speeds. This makes these steppers good candidates for some applications currently beholden to servos.
The new stator design also features improved linearity, the characterisitic most influential on microstepping accuracy. The better the motor's linearity, the lesser tendency there is for micorsteps to stretch and compress. The RS motors rightly deserve the classification, "Microstep Optimized". Additionally, the motors are surprisingly quiet in comparison to other stepper motors.
