Hydraulic 3 port flow control ongoing pressure 3/8" bsp
Hydraulic 3 Port Flow Control Ongoing Pressure 3/8" bsp

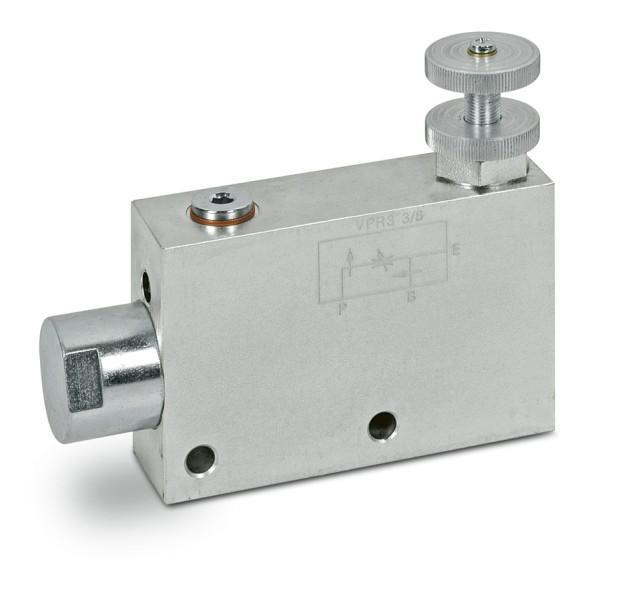

3/8" 3 PORT FLOW CONTROL VALVE WITH ONGOING PRESSURE LINE - V1060
This valve enables to keep "P" flow constant to a certain setting, independently of the required pressure or the inlet flow of the valve. Exceeded flow is drained in "B" and it is available for a second use. Also port "B" is insensitive to pressure changes, but not to flow changes.
* Max adjusted flow 40 l/min
Applications: Minor leakage (few drops per minute) is needed. Connect B to the tank or to a second actuator. To adjust inlet pressure in P screw in or out, hand wheel, after loosening the locknut.
