Mitsubishi movemaster robot arm rv-2A
Mitsubishi RV-2A(robot is in excellent working order)
(Robotic system when purchased new cost around $65000)
General Specifications: 2 kg Payload, 621mm Reach, 3500 mm/sec Speed, +/- 0.040 mm Repeatability

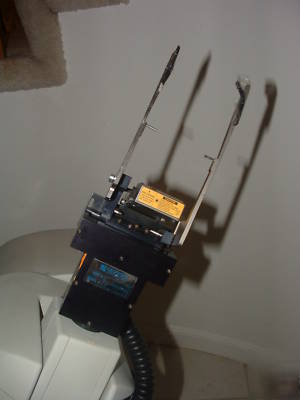

The Mitsubishi RV-2A robot assembly includes: robot arm, controller, manuals, power/signal cables, pendant, linear slide, single axis interface, gripper controller, and laptop.
The RV-2A robot controller is compact and light-weight as well as equipped with capabilities of network communications through Ethernet or CC-Link.
Enhanced operation performance - Operational performance has been enchanced as a result of using a new model motor encoder. High-speed operations are avilable because of higher-speed movements in the articulation of the wrist axis. In addition, the standard configuration employs a brake-equipped motor for the robot wrist (J5 axis), ensuring higher reliability.
Compact and high-performance controller - This controller requires only an A4-size area for installation (the smallest for this class of our robot products). A 64-bit RISC CPU is used, with improved functions, performance and expandability. The robot language (MELFA-BASIC IV) supports a full set of commands that allow you to cope with advanced operations.
A complete set of optional utilities including network communications - Network communications through Ethernet or CC-Link are fully available. Advanced systems can be readily configured by using a variety of optional control functions,such as additional axis control and built-in vision sensor. Moreover, SupportWare (compatible with Windows 95, 98, 2000, and XP ) is available, which provides not only programming function and simulation function but also remote monitoring function that can be operated from a remote site; your startup and maintenance work can be facilitated.
