Atmos tech horizontal filter module cleanroom equipment
Atmos-Tech Horizontal Filter Modules- BRAND NEW!
Model HFM84-DD/GS/ST/SP Mfg JULY, 2009 Visit our website, atmostech, for more information.
On sale for $4200 each! (List price $7663.00) JUST REDUCED. MUST MOVE INVENTORY
NOTE: These units do NOT contain final filters. Hepa or Ulpa filters can be fabricated at an additional expense. Filters are manufactured right here in our facility, there is no middle man. Other modifications can be done at an additional expense. Prefilters are included. Cad drawings of the unit can be sent if there are any questions.

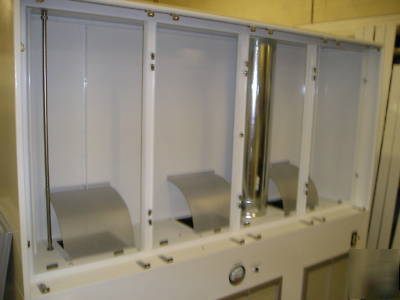

Atmos-Tech Horizontal Laminar Flow Modules are standard cleanroom equipment for providing a simple supply of sterile air. Units can be positioned together to create a solid wall of laminar flow air across a room or used individually in conjunction with a table.

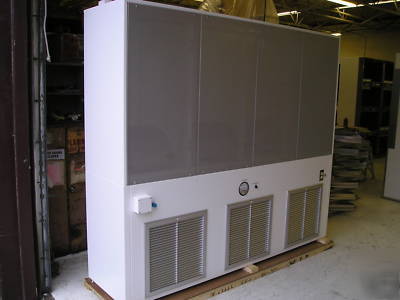

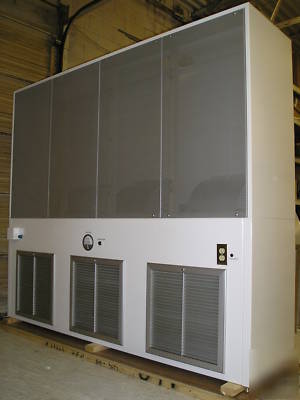

Included Components: Unit dimensions 95" wide x 83" high x 24" deep -duct collar protrudes approximately 2" past the top. Hepa grills begin 36" from floor.

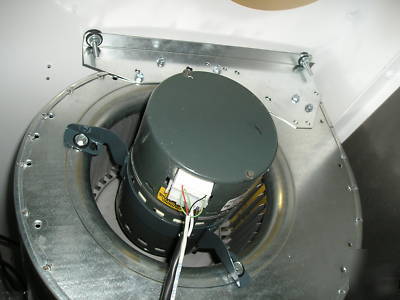

-(3EA) 3/4HP ecm motors capable of producing 3200cfm total at 1.2" sp
- Power control box with breakers and transformer.
-Gel seal hepa filter frame to accept Hepa or Ulpa filters (4ea) 21.75" x 44"
- (3EA) prefilters 20" x 20" x 1" 35% efficient
- Prefilter grills (anodized aluminum) hinged for easy prefilter maintenance
- Single connection junction box 208V/3PH/60HZ (13.3 FLA)

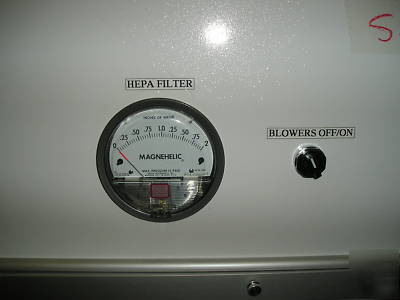

- 2wg magnehelic pressure gage for filter pressure
-(4ea) adjustable leg levelers
-Perforated Aluminum Hepa Grills 40% open area

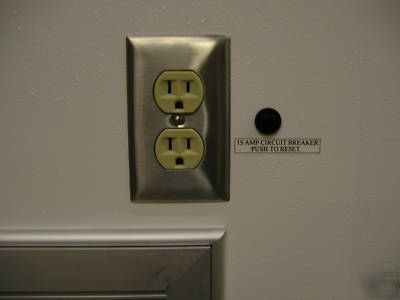

-Duplex receptacle with circuit breaker
-Internal makeup air supply duct 10"round
-Lighted on/off rotary switch for blowers
-3/4" ss tubing through plenum for lab processes
-extra junction box on front of unit, piped to top for lab controls
-unit white epoxy painted 16ga cold rolled steel
In accordance with our policy of continual product improvement, ATMOS-TECH reserves the right to incorporate and use equipment and
material to conform with the latest design of its products while maintaining the specifications of the equipment.
ALL FREIGHT COSTS TO BE PAID BY THE PURCHASER!
Should you have questions or requests, please contact Steve Mastej (shop foreman) at (***)-493-8400 or email ****@atmostech.com
