Dual unitemp lumber dry kilns, 100K board feet capacity


Dual Unitemp Lumber Dry Kilns Contained In A Single Building

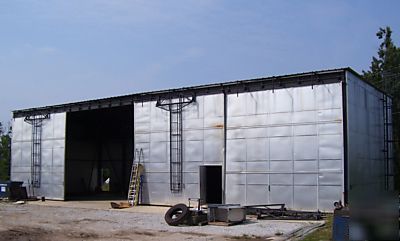

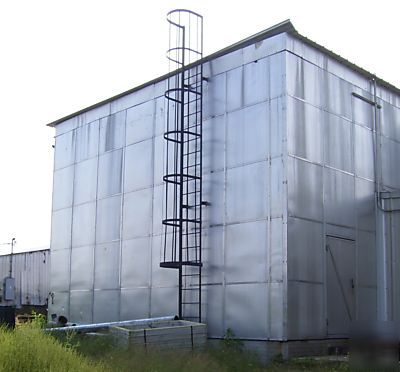

This offering is for Two Unitemp Lumber Dry Kilns in One Divided 30' x 80' x 20' Building with the propane, direct fired furnace, primary circulation, recirculation, moisture add back and control systems installed in a rear, 12' x 60' x 11' Building Addition. Total Capacity is 100,000 Board Feet and Total Square Footage is approximately 3,120 Square Feet. The building is a welded, epoxy coated, carbon steel framework clad with 3" Thermax insulated panels at the walls and ceiling. It has roller track type doors for package loading with an aluminum framework and clad with the same 3" Thermax insulated panels. The rear addition is constructed of welded, rigid framework, R-Panel wall and roof sheathing and roll insulated ceiling. Interior kiln ductwork and deflectors are fabricated from heavy gauge, carbon steel sheet. The building was erected and the kiln systems installed in 2003 at an total expense of $350,000. Shortly thereafter the property was sold and is currently being utilized as a metals recycling facility. These kilns saw little usage after installation and the one kiln appears to have not been used beyond the initial test firing. This building structure and the kiln equipment are of the Highest Quality Design, Construction, Materials and Components!
Basic Specifications for Each Individual Kiln Section are as follows:
- 30' wide x 40' long x 20' ceiling Building Section.

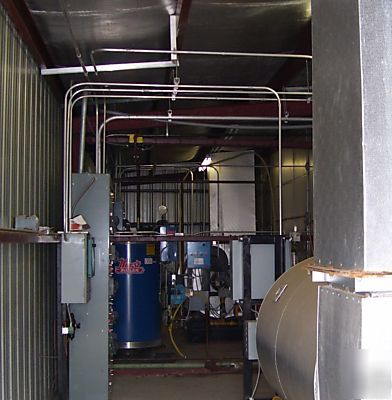

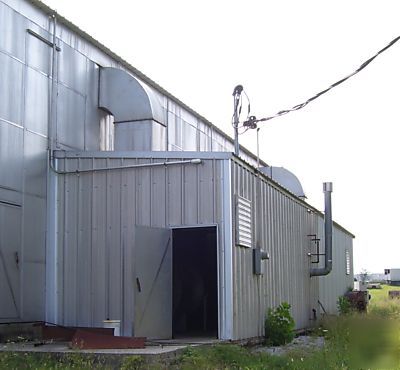

- 12' wide x 60' long x 11' ceiling Building Addition.

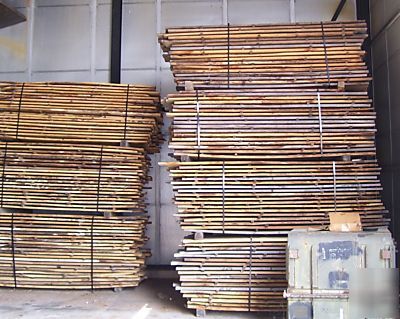

- 4' wide x 10' long x 4' height package size.

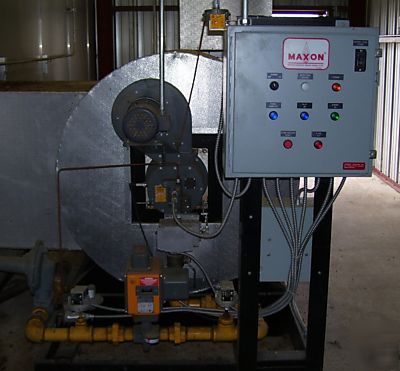

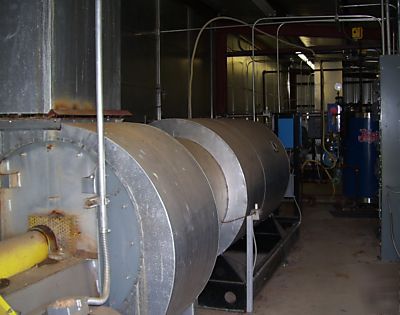

- Unitemp Propane, Direct Fired, 5MM BTU Furnace.
- Can be Converted from Propane to Natural Gas by New Owner.

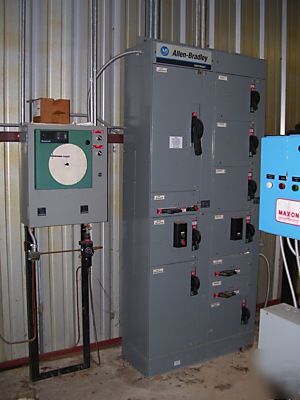

- 1000A Allen Bradley MCC Panel.

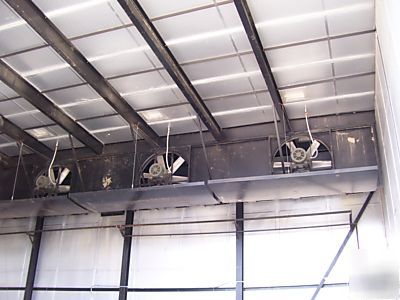

- Four (4) Interior, Direct Drive, 10hp, 48" Circulation Fans.

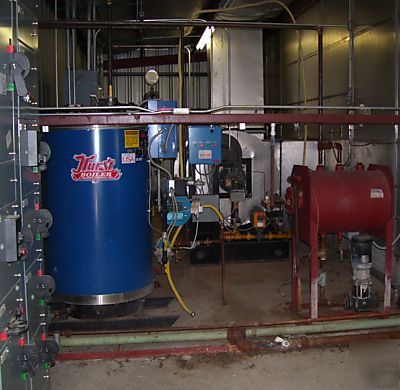

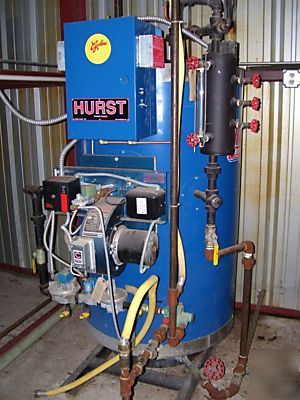

- 15 hp Hurst Boiler for the Moisture Add Back System.

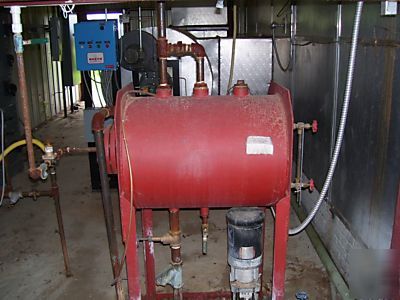

- Moisture Add Back System serves both Kiln Sections.
Please Note - This building and equipment is being advertised locally. We reserve the right to end this offering if this building and equipment is sold via any other means.
Contact - If you require Further Information or Photos or Have Further Questions, please Contact Us! We Will Respond to all inquiries and requests will occur Within 24 Hours!
