Honeywell 8003-217 r.i.p.s. I9000 control unit 1EA
HONEYWELL 8003-217 R.I.P.S. I9000 CONTROL UNIT 1EA

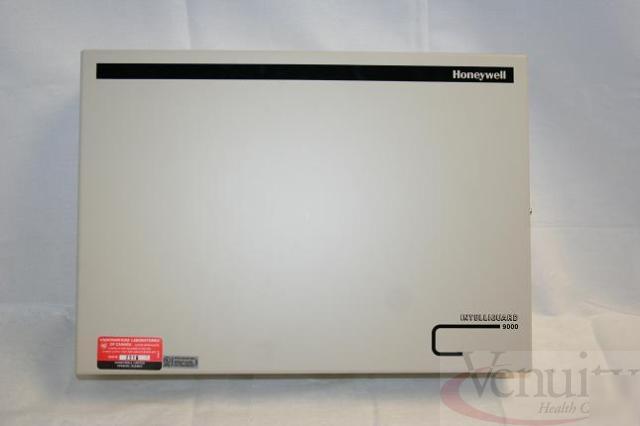

This listing is for 1 Honeywell 800-217 R.I.P.S Intelliguard 9000 Control Unit.
The Intelliguard 9000 is a protection system designed to detect intrusions and other critical conditions. It also monitors multiple areas, receiving input and providing localized reporting and control. A single I9000 Control Unit can simultaneously monitor many different building areas with high security door sensors
The Control Unit supports up to 62 devices, 31 on each of the two communication ports, with 512 input points and 64 output points.
A Remote Intelligent Power Supply (R.I.P.S.) consists of an I9000 enclosure containing the 8003-295 Intelligent Switching Power Supply without an ICP II Control Board. The RIPS is required when the installation power requirements exceed the available control unit power. Each I9000 CU supports a maximum of seven RIPS. The Control Unit supports up to eight ISP s seven in the RIPS and one located in the I9000 control unit enclosure.
This is only the Control Unit and Power Supply not the entire I9000 Security System.
* Transformer must be connected to a non-switch electrical circuit.
* Type Class II Energy Limiting
* RS-485 receiving and transmitting signals
* 0.06in(1.52 mm) cold rolled steel
* 14 7/16 in W x 10 5/16 in H x 3 1/8 in D
