Stapla rb-80 welder moskito-12-200-01 head alfa series
Our Asset #:DRW9 - 166 A,B,&C Qty available:1

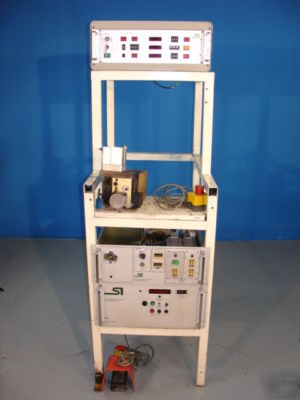

Stapla RB-80 Welder Moskito-12-200-01 Head ALFA Series
Condition: Looks good but needs a little TLC see inspection Guaranty: See our 7 day DOA Guaranty!
STAPLA Ultrasonic Welder, with O.C. Monitor
HP/Amp/KW/KVA:2 KW Voltage: 220-230 Phase: 1 Other Info:
King Surplus is not making any representations, warranty of merchantability or any implied warranty of fitness for a particular purpose. For reference only:Ultrasonic Splice Welding ALFA Series
The finest quality built machines by STAPLA
The ALFA Series splicers are the ultimate machines for ultrasonic wire splicing. Designed and manufactured by the same pioneers, who produced the first industrial splicers, the ALFA splicers offer the best quality and value.
All models include STAPLA innovative features that separate them from other splice welders in the world.
* Specially designed transducer assembly with nodal support feature and special booster.
* No separate tip is used. Solid steel horns with high heat dissipation and controlled directional vibration.
* Direct and consistent welding force with special beaings support anvil assembly.
* Rigid welding confinement for consistent weld dimensions.
* Simple tooling adjustment/replacement with automatic positioning.
* Precise tooling adjustment with 0.1mm increments.
* Minimum operating cost and long tool life.
* Portable and used on the assembly board.
* Solid and precise gathering block for frayed strands and control of weld width.
* Retractable anvil will allow accessible weld area for loading wires and yet safely by a displacement sensored guard.
* Modular components allows ease of maintenance.
* Local setup switch controls motions manually for set up.
* Flat surface top/easy loading of wires.
* Tooling is available for short and long strips
* All Alfa splicers can weld up to a 32 mm2 cross-sectional area. Our special model can weld up to 45 mm2
Asset Location: TX Del Rio 78840 Area: warehouse floor FRONT
Length: 20 Width: 24 Height: 9
a. Est. Wt. each: 105LBS b. Est. pkging wt: 15 c. Est. total wt: 120
