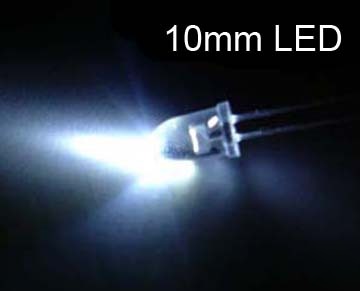

1000PCS 10MM 25000MCD led lamp -ultra bright white led
* Emitted Colour : White
* Lens Colour : Water Clear
* Peak Wave Length (nm) : N/A
* Forward Voltage (V) : 3.2 ~ 3.8
* Reverse Current (uA) : <=30
* Luminous Intensity Typ Iv (mcd) : Average in 25000
* Life Rating : 100,000 Hours
* Viewing Angle : 20 ~ 25 Degree
* Absolute Maximum Ratings (Ta=25C)
* Max Power Dissipation : 80mw
* Max Continuous Forward Current : 30mA
* Max Peak Forward Current : 75mA
* Reverse Voltage : 5~6V
* Lead Soldering Temperature : 240C (<5Sec)
* Operating Temperature Range : -25C ~ +85C
* Preservative Temperature Range : -30C ~ +100C
