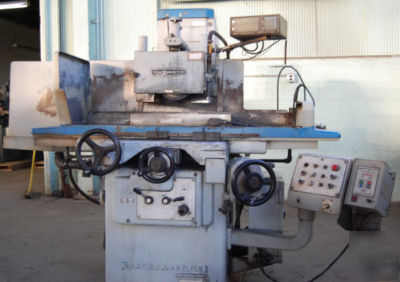

12" x 24" okamoto hyd horiz-spindle surf grinder #25756
New 1984, Serial No 7018, Model 124N, Series ACCUGAR
Automatic Incremental Power Down Feed
Wheelhead Mounted Wheel Dresser
Automatic Grinding Cycle - Power Head Elevation
Coolant Filtration System (Tank & Pump)
Table Working Surface, W x L........... 12" x 24"
Grinding Length Capacity, Maximum...... 24"
Height Under 12" Grinding Wheel........ 13.7"
Table Longitudinal Travel.............. 29.5"
Table Cross Travel..................... 13.4"
Table Cross In-Feeds, Range............ .02 to .8 IPR
Spindle Vertical Feeds, Range.......... .0001 to .0015 IPR
Power Rapid Vertical Traverse.......... 19 IPM
Grinding Wheel Spindle Motor........... 5 HP/1730 RPM
Hydraulic System Motor................. 2 HP
Floor Space Required, L x D............ 8'7" x 6'2"
Overall Height......................... 6'1"
Weight, Approximately.................. 4900 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $8,950.00
