33 ton finn power cnc turret punch press

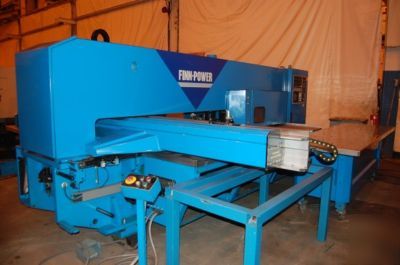

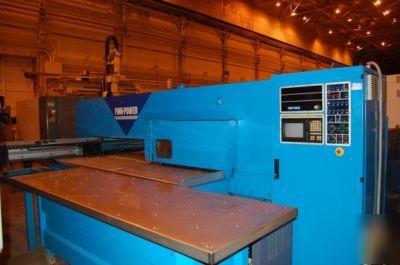

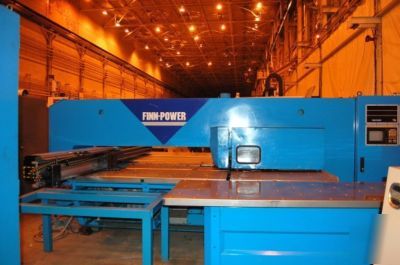

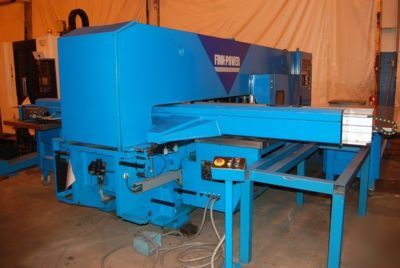

33 Ton Finn Power CNC Turret Punch Press
Punching Force ....................... 33 Ton
Maximum Material Thickness ........... 5/16"
Max. Working Area .................... 48" x 100"
Max. Sheet Weight .................... 440 Lbs.
Table Travel ......................... 51.8 X 101"
X-Axis Traverse Speed Max. ........... 3150 IPM
Y-Axis Traverse Speed Max. ........... 2362 IPM
Hits Per Minute On 1" Centers ........ 300
Hits Per Minute Nibbling ............. 600

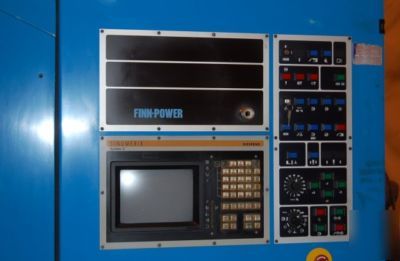

Siemens Sinumeric 3N CNC Control
Fully Programmable Depth & Stroke Length
21 Station Turret (Amada Thick)
