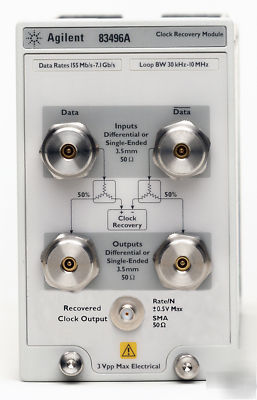

Agilent 83496A electrical clock recovery module
Agilent 83496A Electrical clock recovery module, Electrical Inputs, 50 Mb/s - 7.1 Gb/s
The 83496A multi-rate electrical Clock Recovery (CR) module performs clock extraction for waveform analysis with continuous, unbanded tuning from 50 Mb/s to 7.1 Gb/s, ultra-low residual jitter and Golden Phase Locked Loop (PLL) operation. It provides the first true hardware Golden PLL triggering system because the loop bandwidth can be tuned to the precise values called out in standards for data rates within its operating range.
-> Option 200 (Extend maximum rate from 7.1 Gb/s to 13.5 Gb/s ) - might be available at extra cost (~$6,500)
-> Option 300 (Adjustable Loop Bandwidth from 15 KHz to 10 MHz for Golden PLL operation) - might be available at extra cost (~$1,700)
