Esec CT2000 cartesian assembly robot ct-2000 zevatech

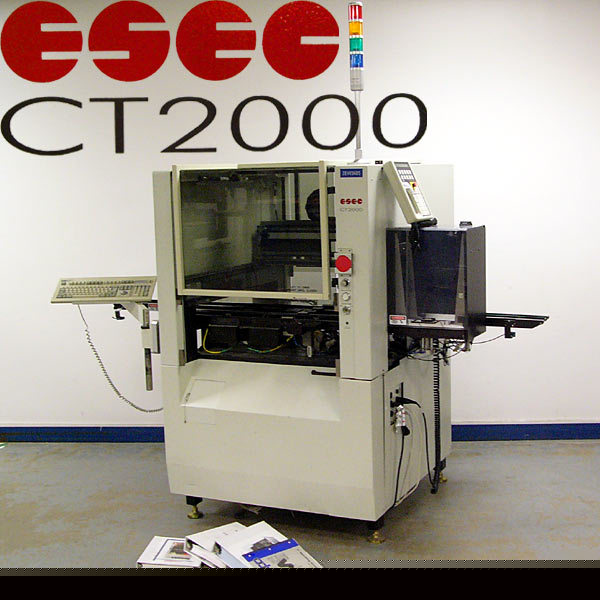

ESEC CT2000 Cartesian Assembly Robot CT-2000 Zevatech
* XYZ work cell 23" x 27" x 4"
* Substrate sized 3"x3" up to 12"x20"
* Vision-driven accuracy +/-0.002"
* Speed: 60"/sec X & Y axes, 20"/sec Z axis, 360 /sec theta
* Resolution: 2 microns X & Y axes, 0.97 mircons Z axis, 0.001
* Repeatability: 0.02mm X/Y 0.01mm Z 0.01
* Accuracy: 0.038mm X & Y (mapped)
* Top & Bottom vision system with programmable lighting
* Geometry recognition and placement offset calculation capability
* CT-2000 Substrate Placer Cartesian Assembly Robot
* Adept Model 133 Teach/Control pendant with LCD screen
* Adept MV-19 VME-based computer/bus system
* Western Servo Design servo motor drive system
* Zevatech Lynx CT-Series Cartesian Assembly System Installation/Maintenance Manual
* ATMI CT-2000 Substrate Placer System Configuration Guide
* ESEC CT-Series Installation and Maintenance manual
* Adept V+ Operating System User's Guide
This system is being sold for parts, because:
