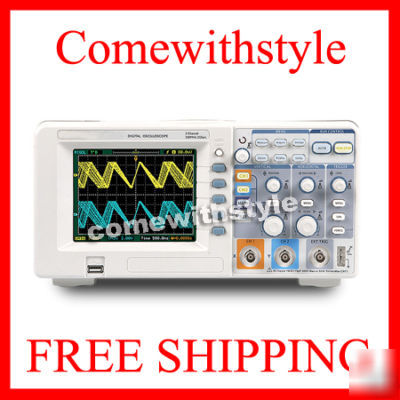

New brand 100MHZ digital storage oscilloscope
100MHz Digital Storage Oscilloscope
* Memory Depth: 10 kpts (Single Channel), 5 kpts (Dual Channel)
* Channels: Dual Channels + External Trigger
* Real time Sampling rate: 2GSa/s ( Single channel) or 1GSa/s ( Dual channel)
* Equivalent Sample Rate: 50 GSa/s
* Time base Range: 2ns/div~ 50s/div
* Input Impedance: 1 M || 15 pF
* Time Base Precision: 50ppm
* Trigger Modes: Edge, Video, Pulse Width, Slope, Alternative
* Trigger Sources: CH1 CH2 Ext Ext/5 AC Line
* Vertical Sensitivity: 2 mV/div to 10 V/div
* Vertical Resolution: 8 bits
* Input Coupling: DC, AC, Ground
* Maximum Input Voltage: 300 V (DC + AC peak)
* Cursor Measurements: Manual, Track and Auto Measure modes
* Math: Add, Subtract, Multiply, FFT, Invert
* I/O: USB Device USB Host RS-232 P/F Out (Isolated)
* Display: TFT (64K, Color LCD), 320 x 234
* Power: Worldwide Use, 100 240 V / 50 VA Max
Direct from Factory ! Retail Value: $3999 !
