1,000 gallon mix tank - s/s - 10 hp #5549
1,000 GALLON MIX TANK - S/S - 10 HP

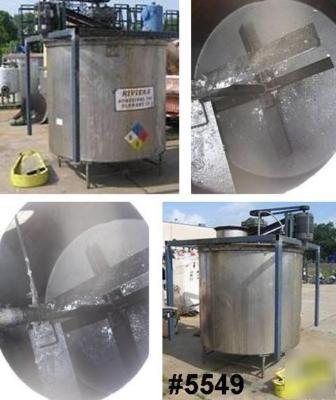

1 - used approx. 1000 gallon mix tank on legs. Stainless steel construction. Approx. 6 ft. dia. x 5 ft. straight side. Slight cone bottom with approx. 2.5 in. outlet. With 10 HP bridge mount agitator 2 groove v-belt driven 1765 RPM with 25.56:1 Dodge Reducer yielding approx. 29 RPM on the shaft. Motor is 575 volt (Can easily be replaced with a 440 volt motor). Shaft has 2 sets of 4 blade turbine type agitator blades. Blades are approx. 7 in. x 24 in. each. Flat bolt on top cover with (2) approx. 18 in. dia. inlets. F.O.B. - Painesville OH
