Altech slimline 20W 1.34A 15 vdc power supply ps-S2015

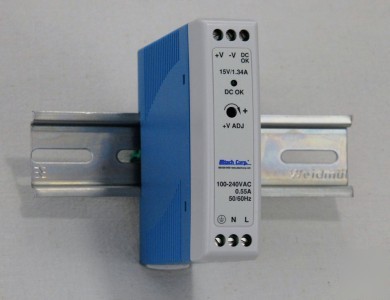

Altech Slimline 20W 1.34A 15 VDC Power Supply PS-S2015
* Universal AC Input / Full Range
* NEC class 2 / LPS compliant (Only selected models; see data sheet ataltechcorp.com
* LED indicator for power on
* Input voltage range: 85-264V AC, 120-370V DC
* AC inrush current (typical):
* Cold start: 20A at 115V AC, 40A at 230V DC
* DC adjustment range (typical): 10% rated output voltage
* Overload protection (typical): 105%-160% constant current limiting, auto-recovery
* Over-voltage protection (typical): 115%-135% rated output voltage
* Setup, rise, time (typical): 500ms, 30ms/230V AC, 10000ms, 30ms/115V AC, at full load
* Withstand voltage: I/P-O/P:3KV AC, I/P-FG:1.5KV AC, O/P-FG:0.5KV AC
* Working temperature: -20 to +70 C (-4 to +158 F), refer to output derating curve
* Safety standards: UL508, EN60950-1*
* UL Listed, CE Rated, RoHS Compliant
* EN61000-4-2,3,4,5,6,8,11
* ENV50204, ENV55024, EN61000-6-1
* EN61204-3 Light Industry Level**, criteria A
* Military Standard: MIL-HDBK-217F
Specifications & Additional Information
500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
50 ms/230VAC 20ms/115VAC at full load
Protection type: Constant current limiting, recovers automatically after fault condition is removed
-20 ~ +70 C (Refer to output load derating curve)
Component: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X,Y,Z axes; Mounting: Compliance to IEC60068-2-6
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:>100M /500VDC
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3 Heavy industry level, criteria A
236.9K hrs min. MIL-HDBK-217F (25 C)
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 f & 47 f parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
