American bosch magneto frame / housing # ZR4 ED26

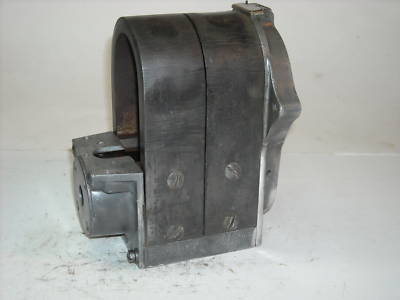

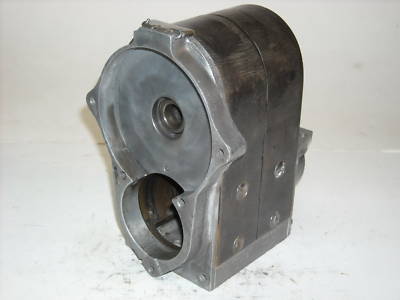

AMERICAN BOSCH 4 CYL. MAGNETO FRAME / HOUSING USED

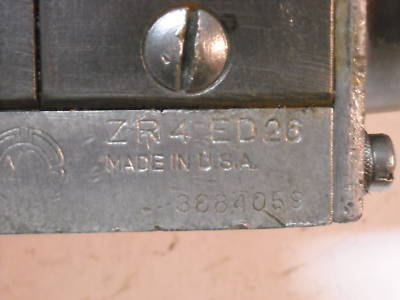

Part # ZR 4 ED26 s/n # 3884059

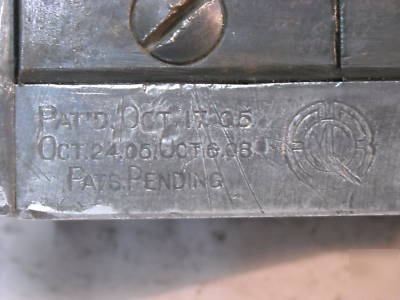

Patent Oct. 17 05, Oct. 24 05, Oct. 6 08

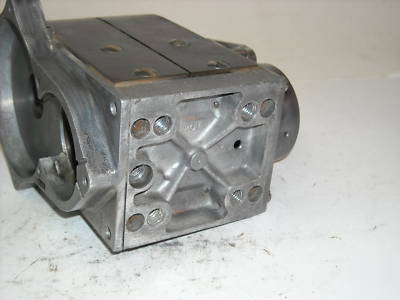

Base mount holes are 3/8" coarse thread. 2" front to back and side to side.
Strong magnets. Front magnet is stamped 56 IL on inside.

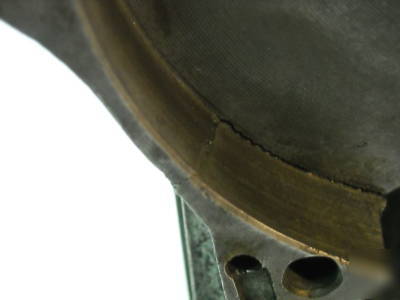

Front cover (cap end) has a crack (see pics). Easy TIG weld fix.
Nice clean condition overall. Missing internal parts except as shown.
Found in my uncles dry, heated repair shop. He rebuilt magnetos of all types.
He also repaired and restored John Deere, Allis-Chalmers, Farmall and other tractors.
Will be listing other magnetos and parts soon.
I do my best to list my items as honestly and detailed as possible and do not intentionally misrepresent any item.
