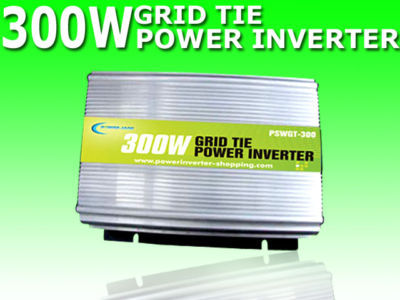

300W grid tie solar panel power inverter+meter ac 110V
for solar panel/wind turbine use

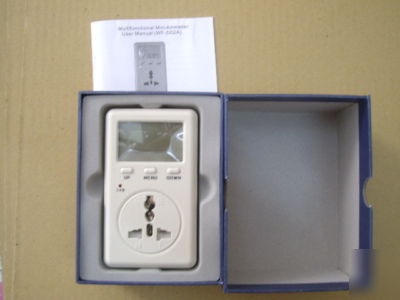

2. Power: 1 3000W can display running power less than 1W.)
3. Electricity consumption: 0.0001 999.9kWh
5. Ratio of operation condition: 0 100%
6. Operation time: 0 60 minutes to 24 hours to 999 days (operation time in single operation period/accumlated time all operation periods)
8. Refresh rate: more than one time per second
1. power jack grid tie inverter is designed for small solar panel & wind energy market, it's suitable for family enengy system.
2. this inverter can directly use solar panel, wind charger through inverter to home grid.
3. easy to installation, just need solar panel, grid tie inverter, then directly can put into home grid.
note: this inverter only has grid tie inverter function, do not have tranditional inverter function, pls do not connect the battery for 12v dc source, if you want, you can connect to 24v battery banks, for further questions, pls leave message to ask, tks.

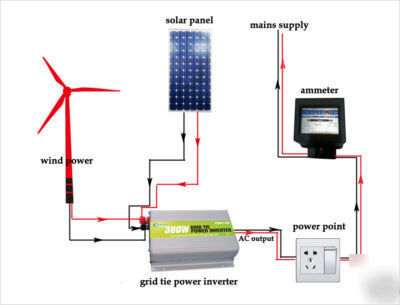

The inverter can be connected to any outlet at home, when this line run by the conventional electric network. The inverter IC will monitors the volume, frequency and phase of the home grid, then produce a pure sine wave that the frequency and phase will be match the grid's, and the volume will be higher than the grid's, then according to our current controlled PWM, to control the output power to the grid. The inverter will puts out power when the home grid is on.
2. why use power jack grid tie inverter?
when you use solar panel through grid tie inverter, your home power meter will reduce the speed(if you are using other electric appliances), or your home power meter will backward(if you are not use any appliances)
3. difference of power jack grid tie inverter
traditional grid tie inverter is the solar panel are connect in series, so if one solar panel did not work or bad efficiency, then the whole system will be effects, but power jack grid tie inverter, you can use every inverter in parallel, in this moment, each inverter has it's own MPPT, can make every solar panel got the max power.
power jack grid tie inverter has 3 green lights, when the charge fucntion is normal, then this 3 lights will turn on, but if there are not dc sources(like in the night, no sun shine or raining day), the red led light will turn on, the inverter will stop to work, in this moment, the inverter will close the door, the home grid power will not back to inverter.
DC 14 Volt 28Volt(solar panel)
Accessary: will including the AC power cord, DC cable will not including!
Put female to the inverter first, make sure it is connected, then put male plug to the home power.
Take off the male plug from the home power first, then take away the female plug.
Starting from 6 Months until 1 Year
If the product was damaged by yourself or was inappropriately used, exists no warranty !!!
For remote area, need add extra postage charge
Other country pls ask the postage charge, tks.
