Lmi milton roy A341-155S metering pump

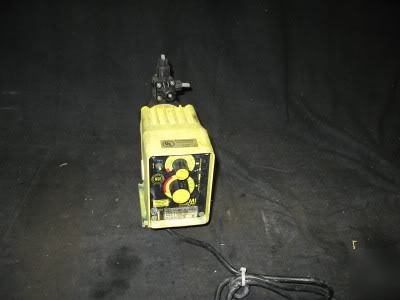

LMI MILTON ROY A341-155S METERING PUMP
Click here to download this units manual
LMI Electronic Chemical Metering Pumps
Introducing the ROYTRONIC Series A metering pump offering a robust design, control options and improved electro-magnetics to meet all flow / pressure ratings. The pumps are available for applications up to 250 psi with capacities between .001 and 2.0 GPH. Single or dual manual control options with pulse input or 4-20 mA input are available. The line includes ferrule designed fittings that set a new standard for secure, leak-proof tubing connections.
Series B and C Chemical Metering Pumps
Series B and C Chemical Metering Pumps have been an industry standard for over 20 years. The familiar yellow and black pumps have a rugged, totally enclosed, chemically resistant housing for protection in the harshest environments. Encapsulated electronics and a rigid housing and stroke bracket ensure years of precise, repeatable performance. Several control options are available for all applications and budgets:
Type 9 control is designed for easy integration into chemical feed systems. The stroke rate may be controlled manually or by an external signal generated by a flowmeter, controller, transmitter, PLC or other device. Divide or multiply a digital (pulse) input or program a response to a milliamp (4-20, 0-20, 20-4, 20-0) input. Remote on/off and low level inputs are standard. The clear liquid crystal display provides the user with operational status. The unique 5-level power control reduces system shock and extends the life of the pump. The optional Digi-Pulse Flow Monitor verifies chemical flow and provides an alarm output.
Type 7 control is designed for more economical systems. The stroke rate may be controlled manually or by a digital input. The optional Micropace Control Modules enable the user to divide or multiply a digital input or respond directly and proportionally to a 4 - 20 milliamp input. A low level input is standard.
Type 1 control is designed for accurate chemical feed where manual or on/off control is all that is required. Dual manual control of stroke speed and stroke length are provided.
