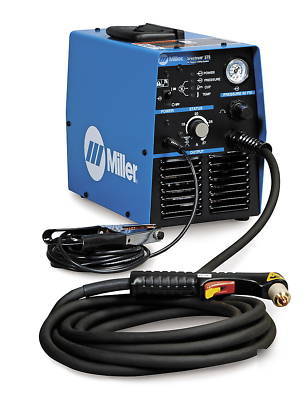

Miller spectrum 375 plasma cutter 903891
Solid state design and Miller's reliable technology pack a ton of performance into the portable, 49 pound Spectrum 375 CutMate. This versatile power source adapts to the shop or work site by operating on either 115 or 230 volt AC power. This machine can cut 1/2 inch mild steel with a stand off, and can drag cut 3/8 inch mild steel. With new features such as the Pilot Arc Controller, Heavy-duty work clamp, and Ergonomic ICE-27C torch, the Spectrum 375 CutMate is the clear winner in its class.
* Pilot Arc Controller increases cutting capabilities and speeds, and improves tip life.
* Capable of Drag Cutting quality cut (approx. 7 IPM) at 3/8" mild steel. Stand Off quality cut (approx. 7 IPM) at 1/2" mild steel.
* Power Factor Correction expands operator's work area via extension cords with less nuisance tripping than previous model. Allows the Spectrum 375 CutMate to use up to 50 ft of 12 AWG extension cord on 115V, 20 Amp service and to draw 20% less current when cutting and than the previous model.
* Increased Line Voltage Compensation regulates input power to a fixed value as line voltage droops or spikes by +/- 15% for steadier cuts and cleaner ending cuts.
* Advanced Flashing LED indicators for pressure, power, cup and temperature allow faster troubleshooting eliminating unnecessary downtime.
* Ergonomic design of ICE-27C torch with increased comfort, safety trigger, and improved swirl ring and cup. Also, accepts consumables from prior ICE-25C model torch.
* Starts without high-frequency so it will not interfere with controls or computers.
* Postflow cooling circuit extends the life of the consumables and torch by cooling them with postflow air after the trigger is released.
* Consumables storage compartment provides convenient access to consumables and parts.
* LVC Line Voltage Compensation - Keeps output of the power source constant regardless of fluctuation in input power 10%.
* Blow Back Torch Design - The plasma arc is created by pulling an electrical arc between an electrode and tip. This process eliminates high frequency by forcing an electrical arc between the two pieces.
* Post Flow Cooling Circuit - Protection to extend the life of consumables and the welding torch is enhanced by our post flow circuit that provides shielding gas after you release the trigger.
* ICE-27C hand-held torch with 20 ft cable. (accepts consumables from prior ICE-25C) model torch.
* 15 ft HEAVY-DUTY work cable with clamp.
* Extra consumables (3 electrodes, 3 tips, and 1 air fitting).
* 10 ft power cord with 115 VAC, 20 A plug.
* Easy-to-connect, built-in gas/air filter and regulator with extra protection.
* ICE- 27C: 20 ft. hand held replacement torch. Part # 195014.
* MG Air Filter: Part # 042306.
* Replacement Element: 4 per pack. Part # 042312.
* Protective Cover: For Spectrum Thunder and Spectrum 375 Part # 195144.
* RTI Air Filter / Dryer: Part # 195188.
