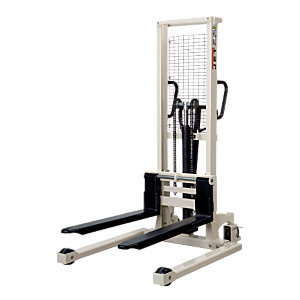

New brand jet hydraulic stacker- 2,200 lb cap-JHS2200
Pallet Capacity (L x W): 48 x 40 "
Turning Radius: 360/50 deg/in.
Handle Force Required at capacity: 85 Lbs
Handle Strokes to reach max height (no load/max load): 44 / 70
Fork Dimensions: 41 3/4 x 5 1/4 x 2 1/4 "
Overall Fork Width (Min - Max): 11/27 - 1/2 "
Outrigger Size (W x H): 4 x 3 1/2 "
Outrigger inner Width (Min - Max): 34 1/4 - 50 1/2 "
Outrigger outter width (Min - Max): 42 - 58 3/4 "
Load Wheel Size (OD x W): 5 x 3 1/4 " Nylon
Caster Size (OD x W): 7 x 2 " Poly/Aluminum
Overall Dimension (L x W x H): 62 x 42 x 78 "
Economical and ergonomic way to handle standard 40" x 48" pallets
Works like a manual forklift to load or unload trucks or stock shelves
Heavy-duty welded steel frame with a durable powder coat finish
Powerful two-stage hydraulic pump Feature quick-lift with no load, top-of-stroke and safety overload bypass system
Heavy-duty dual roller chain for exceptional strength
Swivel casters feature foot brake to prevent movement
Adjustable width forks and outrigger legs handle all pallet sizes
Safety cage provides great visibility
No tools required for optional steel platform
