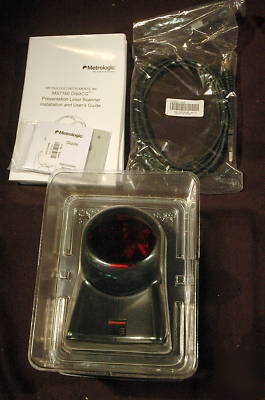

New honeywell orbitcg omni scanner black MK7180-31A138
Visible Laser Diode 650 nm + 10 nm
Autodiscriminates all standard 1-D and RSS-14 bar codes;
for other symbologies call Metrologic
Keyboard Wedge, RS232, Light Pen Emulation, IBM
Blue* = laser on, ready to scan
White* = good read *Indicator colors can be reversed
Depth of Scan Field (programmable)
0 mm - 275 mm (0 - 10.5 ) for 0.33 mm (13 mil) bar codes
60 mm (2.4 ) @ face; 117 mm (4.5 ) @ 275 mm (10.5 )
5 fields of 4 parallel lines (omnidirectional)
35% minimum reflectance difference
Width - Orb 80 mm (3.1 ) Width - Base 102 mm (4 ) Weight 400 g (14.1 oz) Termination 10 pin modular RJ45 Cable Standard 2.1 m (7 ) straight; optional 2.7 m (9 ) coiled; for other cables call Metrologic Tilt - Orb 30 vertical ELECTRICAL Input Voltage 5 VDC + 0.25 V Power .9 W typical @ 5 VDC Operating Current 180 mA DC Transformers Class 2; 5.2 V @ 650 mA Laser Class 1 EN: 60825-1:1994+A11:1996+A2:2001 EMC Class B: FCC Part 15, ICES-003, EN 55022 Class B ENVIRONMENTAL Operating Temperature 0 C to 40 C (32 F to 104 F) Storage Temperature -40 C to 60 C (-40 F to 140 F) Humidity 5% to 95% relative humidity, non-condensing Light Levels Up to 4842 Lux (450 footcandles) Shock Designed to withstand 1.2 m (4 ) drops
