New stainless lead screw&nut cnc robotic motion control
1. OVERALL LENGHT : 18.1/2" (INCH).
6. LEAD SCREW HAS TWO LEADS.
7. MATRIAL NUT IS PLASTIC AND IT'S ROUND WITH TWO FLATS ON ONE END.
8. ATTNTION; ONE END THAT IS NOT SHOWN IN THE PICTURE IS TURNED DOWN TO 1/4: BY 1/4" LONG. THE END YOU SEE IN THE PICTURE WITH THE HOLE IS 1/4" IN DIAMETER BY 7/16" LONG AND THE THREDS ARE RELIEVED TO .325" IN DIAMETER BY 5/8" LONG.

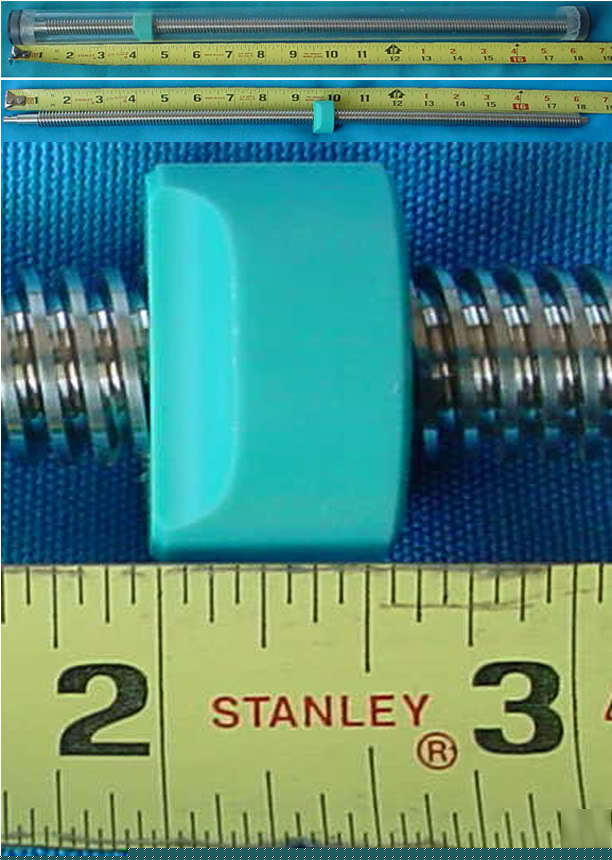

lead-screw-1.jpg picture by etwa4u
