Renishaw cmm touch probe system with interface & heads
RENISHAW TOUCH PROBE SYSTEM WITH INTERFACE

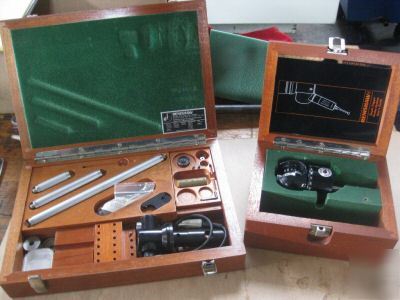

All the items have been tested and are in excellent condition both working & cosmetically. You can't beat this package deal. Get this complete system for the price others are charging for one piece. Complete system and comes with everything shown including:
* PH8 Angular Manual Indexing probe head
* TP2 5W 3-D Touch Trigger Probe (Never used)
* User's guide & accessories
PI4-2The PI 4 interface is the basic interface for standard touch-trigger probes that allows for a PICS or SSR output.
* The supply voltage is automatically detected.
* The unit is usually free standing but can be rack mounted.
* Supports TP1, TP2, TP6, TP6A, TP20 touch trigger probes
TP2 system configurationThe M8 threaded TP2-5 way is 13 mm in diameter. It features adjustable stylus force which enables the probe to carry a wide range of M2 styli, making it suitable for manual and DCC CMMs.
Universal DCC and manual CMMs.
Unidirection repeatability maximum (2s m) (at stylus tip)
Pre-travel variation 360 (XY plane)
Weight *excluding shank and cable
Stylus force range (adjustable)
Stylus force (set by Renishaw)
+Z axis: 4 mm (0.16 in) @ 0.07 N
Maximum extension on PH10 series
