Rocker milling clamps mini mill sieg prazi grizzly hf

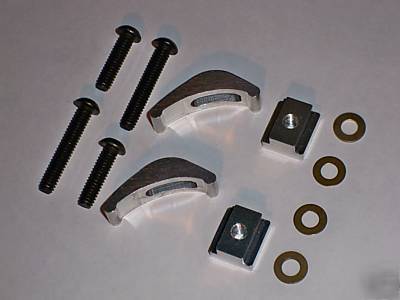

Set of 2 hold down clamps of a non-symmetrical, more traditional shape, four 1/4"-20 screws, 4 washers and T nuts. The T nuts measure .430" top width and .675" bottom width by 3/4" long to fit many mini/micro mill clones with up to 1/2" wide slots.
More traditional shape gives higher auto adjustment capability without stacking blocks (0 to 1-1/8), but the trade-off is a slightly higher profile when holding thinner material. The button-head bolts low head design definitely helps keep this to a minimum though.
Add stacking blocks later (stacking blocks sold separately) if you find you need the extra height, though 1-1/8" without the stacking blocks is nothing to sneeze at. These are extremely handy little clamps for holding work pieces down on a milling table, tooling plate or fixture. The self adjusting height is a real time/frustration saver.
Their compactness make them especially ideal for machines with limited table or tooling plate surface area.
- strong single solid body construction
- self adjusting height 0 to 1-1/8" without blocks
- up to 1-5/8" with one block per clamp (blocks sold separately, please check sellers other items or ask)
- highly burnished finish 6061 aluminum
- comes with two high T-nuts, two 1" and two 1-1/2" long 1/4 -20 button-head cap-screws
8 - 32, 10 - 32 and m6 sets also available (please check sellers other items or ask).
