Willem universal eprom programmer+27C256 / 27C512 -U1
USB Dual Power Universal Willem EPROM Programmer+27C256
and all kinds of adapters(according to your needs to selected ,and pay more )
* Use PC USB Port or 9-12V AC/DC power adapter as power source
* VPP votage can be adjusted continuous ,it is important for programming to some chips
4. Programmer software and manual in English
5. ONE PIECE 27C256 OR 27C512 ( NO PAY)
FLASH Memory( dip on main board ), plcc32 need the adapter
-ICSP connector- use pic adapter-
( dip on main board ), plcc32 need the adapter
( the dip on main board ), the plcc32 need the adapter

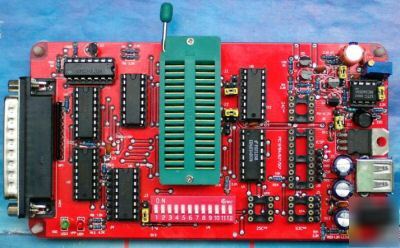

1. USB Dual Power Universal Willem EPROM Programmer (main board -)
1. EEPROM : 28/28C512,010,020,040
2. EPROM : 27C010,020,040,080
3. Flash memory : 28F/29C/29F/39F/49F512,010,020,040,001,002,004
4. support chip 3.3V(29LVxx, 28FxxxB3) by select jumper on adapter
1. FWH : 82802AB/AC, SST49LF002/0030/004/008, AT49LW040/080 ,W39V040FA,W49V002FA,
2. LPC : SST49LF020/030/040/080 , W39V040A ,W49V002A,
1. EEPROM : 28/28C16A,64,128,256
2. EPROM : 27C64,128,256,512
3. Flash memory : 28F/29C/29F/39F/49F64,128,256
3 .Adapter MCS-51 / AVR + PLCC44 -5$
Atmel AT89Cxx (MCS-51) Adapter 32pin to MCS-51
Atmel Auto Setect : AT89C51/52/55 , AT89LV51/52/55
AT89S8252 (8K+2K) AT89S53 , AT89LS8252 , AT89LS53
AT89C1051, AT89C2051, AT89C4051 (20pin) , AT89C51RC (32KB)
AT89C55WD, (6.2V) SST89C54/58 , SI89C52
IntelAuto elect : i87C51, i87C51FA , i87C51FB
i8xC51 i8xC52 , i8xC54 , i8xC58 (tWP = 100uS*25 Pulse)
2. Atmel AVR 8-bit RISC AT90Sxxx (Parallel programming) Adapter 32pin to MCS-51
AT90S1200 , AT90S2313 , 90S2333 , 90S4433 , 90S4414 , 90S8515
90S4434 , 90S8535 Reference AT90S2313 pin
5 .Adapter TSOP48 (LV 8/16bit)+ Adapter TSOP40B+Adapter TSOP32 -45$
Use together with TSOP48 GENERAL Socket A
TSOP32 (**,20mm) Adapter-(**,20mm) package
1 Qty = (Adapter TSOP32 + Cable adapter )
EEPROM : 28/28C512,010,020,040
EPROM : 27C010,020,040,080
Flash memory : 28F/29C/29F/39F/49F512,010,020,040,001,002,004
voltage 3.3V(27LVxx,29LVxx, 28FxxxB3)
Suport : MBM29F017A , MBM29F016A , MBM29F080 , 28F008SA , 29F004S5 ,
29F032 , Am29F080 , Am29F016B , Am29F016 , Am29F017B , Am29F065MU
The TSOP 40 Adapter is made with Yamaichi TSOP 48 ZIF socket and double sided PCB, it supports both 5 V and 3.3 V Flash Memory and programming in BYTE mode.
. Adapter TSOP48 (LV 8/16bit)(**,20mm)
Suport : Am29F200,Am29F400 Am29F800 Am29F160(16M,5V) Am29F320,Mx29F100
HY29F200 HY29F400 HY29F800 AT49F2048A AT49F4096A AT49F8192A,AT49F8011, AT49LV1614
The TSOP 48 Adapter is made with Yamaichi TSOP 48 ZIF socket and double sided PCB,
it supports both 5 V and 3.3 V Flash Memory and programming in BYTE mode.
6. Adapter mini TSOP32 (8mm,14mm)-35$
support : sst 39sf020,sst 39sf040 , sst 39vf020,sst 39vf040 and so on ,mini tsop 32 (8mm,14mm)package.
7. 27Cxxxx ( EPROM 16bit ,1-4Mbit ) Adapter ( DIP40)-8$
support : 27C1024 (27C210), 27C2048 (27C2002), 27C4096 (27C4002),
8. 27Cxxxx ( EPROM 16bit ,4-32Mbit ) Adapter ( DIP42)-10$
support : M27C400, 27C800, 27C160, 27C322
