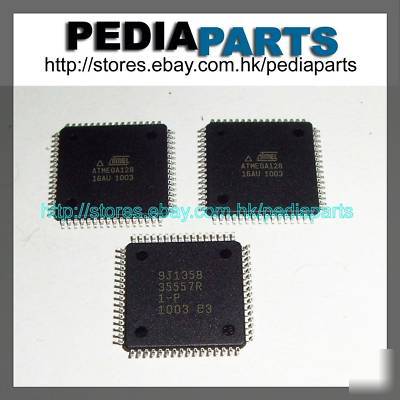

10PCS ATMEGA128-16AU MEGA128-16AU MEGA128 TQFP64 atmel
133 Powerful Instructions Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers + Peripheral Control Registers
128K Bytes of In-System Self-programmable Flash program memory
SPI Interface for In-System Programming
Programming of Flash, EEPROM, Fuses and Lock Bits through the JTAG Interface
Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode and
6 PWM Channels with Programmable Resolution from 2 to 16 Bits
2 Differential Channels with Programmable Gain at 1x, 10x, or 200x
Byte-oriented Two-wire Serial Interface
Programmable Watchdog Timer with On-chip Oscillator
Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and
Software Selectable Clock Frequency
ATmega103 Compatibility Mode Selected by a Fuse
64-lead TQFP and 64-pad QFN/MLF
