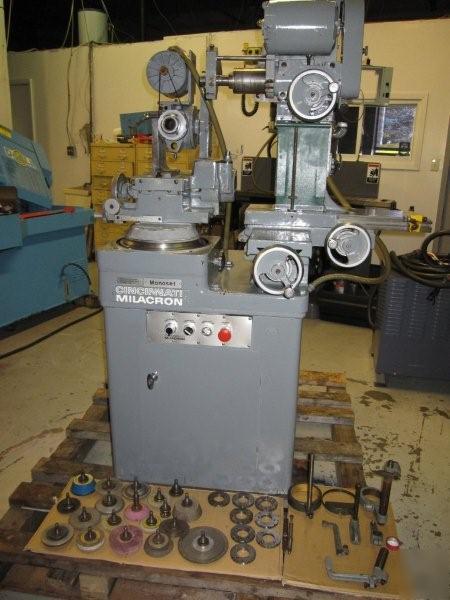

1977 CINCINNATI MONOSET CUTTER AND TOOL GRINDER
CAPACITY ....................................... 12"
WORKHEAD SWING OVER MAIN SLIDE MAX.DIA ................ 1-1/4"/ 0.12"
MAXIMUM/MINIMUM WORKHEAD COLLECT HOLE DIAMETER ....... 4"
MAXIMUM GRINDING WHEEL DIAMETER ...................... 6"
MAXIMUM LENGTH OF WORK BETWEEN SPINDLE AND TAILSTOCK CENTER
WORKHEAD SLIDE TRAVEL: LONGITUDINAL ................. 3"
CROSS, OFFSET SLIDE, TOTAL TRAVEL ................... 2-1/4"
FRONT OF CENTER ..................................... 360 DEGREES
WORKHEAD SPINDLE ROTATION ........................... 235 DEGREES
WORKHEAD ANGULAR ADJUSTMENTS: ....................... 40 DEGREEES
MAXIMUM TURNTABLE SWIVEL ............................ 6"
ABOVE AND BELOW CENTER .............................. 7-1/2"
WHEELHEAD SLIDE TRAVEL: LONGITUDINAL ................ 4.5"
CROSS ............................................... 5"
WHEELHEAD, VERTICAL MOVEMENT: ABOVE CENTER BELOW CENTER
MACHINE WEIGHT ........................... 1,500 LBS
* (8) INDEX PLATES FOR THE SPIRAL LEAD INDEXING UNIT
*** MACHINE IS UNDER POWER IN OUR LI NY WAREHOUSE ***
CONDITION: VERY GOOD (ORIGINAL PAINT)
