Ap-PSL14 14-slot pci / isa backplane V0.0
AP-PSL14 14-slot PCI / ISA Backplane
* General Backplane Specifications (Where Applicable)
* 4 layer PCB (printed circuit board)
* High quality Molex connectors
* Multiple PCB mounting holes for easy chassis alignment
* ATX, PS/2, 3.3V and terminal block power connectors
* Power connector for CPU fan
* 5-pin keyboard connector(s)
* Power LEDs on system voltage buses
* PICMG standard compliant

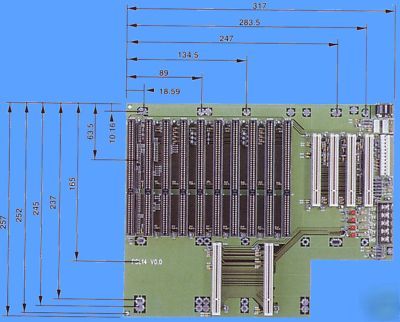

* Board Size 317x257mm ( 12.48" x 10.25 ")
