Deltron xyz posi drive-lead screw driven-model-LS3-6

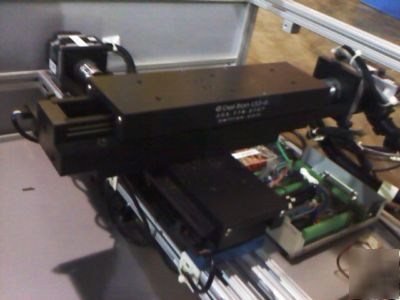

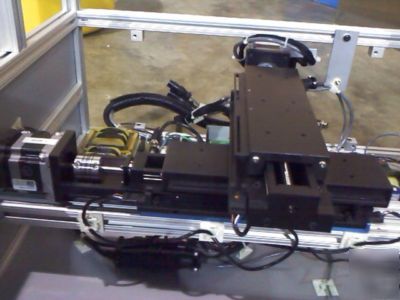

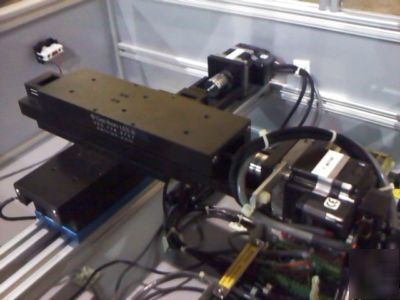

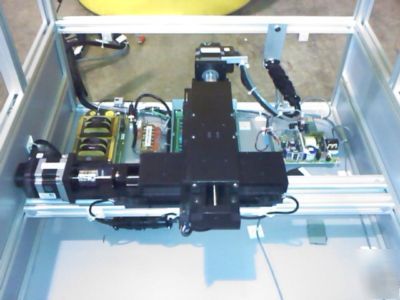

1)Deltro XY Model LS3-6-List for $1944.00-Link for more info below. Link for more info below.
http:// /search/Posi-Drives_Lead_Screw_Driven_Model.aspx?pkid=79

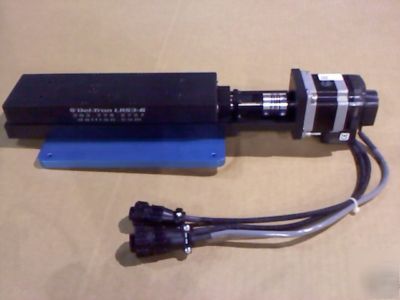

2)Deltron Z Model LRS3-List for $1156.00-Link for more info below.
http:// /search/Posi-Drives_Lead_Screw_Driven_Model.aspx?pkid=23

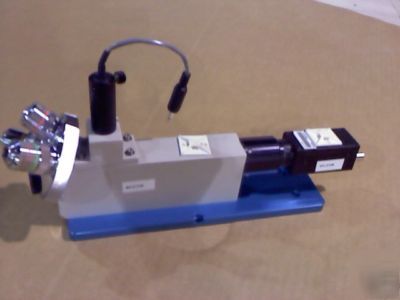

3)Microscope with camera.Camera list for $1100.00.The objectives on the microcscope are LWD-M-5/0.10,LWD-M-20/0.30 and LWD-M-10/0.22.

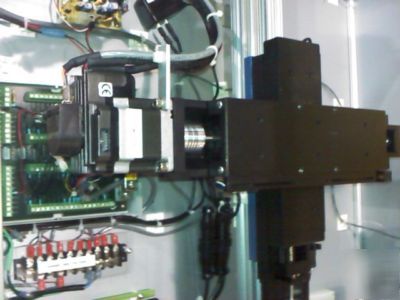

4)Schneider Electric Motion MDrive Stepper motors=3 pcs list for $328.90-Total $986.70-Link for more info below.
http:// /downloads/datasheets/MDM23Plus.pdf
4)Comes with National Instruments Model UMI-7764(20 Mhz Encoders)4-Axis MOT Wiring connectivity.-List for $319.00

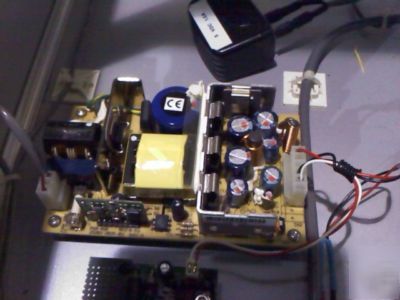

5)PSA-45A Board (Power Supply)29203-202A-03-94V-0.
6)IMS -IP Series-Linear Unregulated power supply Model IP40
Compact, economical Posi-Drive stages from Del-Tron take the work out of designing motion control systems. Available in 3 size profiles our ball and crossed roller stages require no alignment of components and install with standard fasteners. They are fitted with anti-backlash lead screws and multi-beam couplings with high speed misalignment capability and standard NEMA motor mounts. Available in one, two or three axis configurations these stages travel up to 12 . The crossed roller slide option increases load capacity up to 180 lbs. and 100 million inches of travel is possible at 1/2 rated load. For your convenience solid model drawings for our entire product line are available on our website and we are always ready to discuss any special needs or modifications you may require.
Friction-free linear ball or roller slides
Accurate, repeatable linear travel
Compact adaptable configuration
Adaptable to standard NEMA motor mount configurations
