Dro jenix usa 4 axis fits 9 x 42 knee mills 749.00
Shopmaster is offerring the only truly professional grade DRO system available factory direct. After 28 years in business and thousands of machines sold, we can say without question that this is the finest quality system available at any price.
Our system is manufactured to the strictest ISO 9001 standards as well as ENV50204.
That is why we confidently offer a FULL 5 YEAR WARRANTY
All parts and warranty is handled in USA
For the set price you may order a system customized to your own machine.
1 Complete manual with real English and mounting instructions
4 Etched glass optical scales in your selected lengths ( up to 60" total)*
4 Sets generic mounting hardware
* Example- Bridgeport 9 X 42 Knee mill or any of the various clones
If you are uncertain of how to figure your scales, please contact us.
Other countries may require an additional charge- please contact us for a quotation.
Please note: Some countries will collect duties and VAT taxes as well- check with your local tax agency.

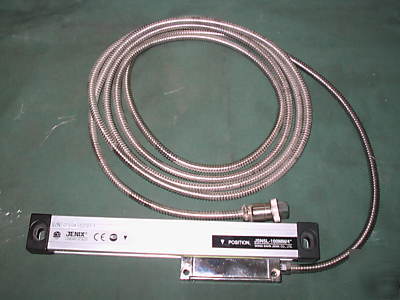

The scales use the etched glass refractive light method chosen by all professional machine shops. They are housed in sealed aluminum extrusions with a neoprene seal . The cables are nearly 10 feet long and are protected by metal shields. The connections to the display are by 6 pin screw-on connectors for vibration free connections.
Each scale has oblong holes in the ends for adjustability during installation.
The display has a die cast housing with rubber pads for slip free positioning. There are also tapped holes in the base for permanent mounting. The long scale cables ( nearly 10' ) allow you to mount the display in any number of locations.
The display has a standard computer style AC power plug, and can run on either 110 or 220 volts- 50/60 HZ
Internally it has a memory backup to retain settings in the event of a power outage.

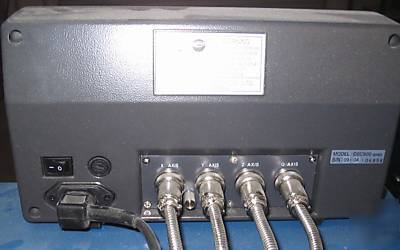

The rear panel also houses a replaceable fuse for surge protection.
There is a main power on/off switch on the rear which powers the internal circuitry. On the front is another on/off switch which controls the LED displays.

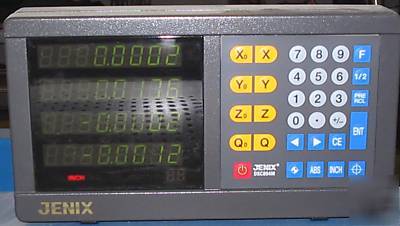

The front panel has a membrane protected keyboard for the many functions.
The display used bright LED's for easy reading in all light conditions.
Preset and Recall- input a value and repeat it continuously
Half function- divide any value by 2
Inch/Metric- Convert from Inch to Metric values
Absolute and Incremental positional
Bolt hole circles- Program bolt hole circles and multiple bolt hole circles
Resolution setting- choose 0.002", 0.0002", 0.0004" or 0.00004" settings
Direction change- set plus or minus direction
Rate of Correction- Adjust for errors in machine
Program reset- Delete data and return to default settings
Testing- Diagnostics of display functions
Lathe summing- Add values of 2 axes
Double counting- Set for diameter turning
Tool offsets- Assign length values to multiple tools
2 AXIS for all lathes up to 14 X 40 549.00
2 Axis display and any 2 scales up to 40" total
3 AXIS for all mills up tp 9 X 42 649.00
3 Axis display and any 3 scales up to 48" total
