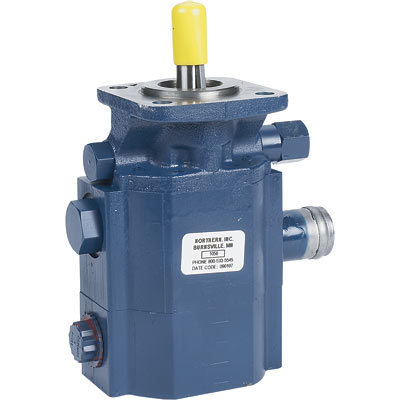

Haldex hydraulic pump - 16 gpm, 2-stage, model# 1001507
Haldex Hydraulic Pump - 16 GPM, 2-Stage, Model# 1001507
The 2-stage pump can give you faster cycle times and higher possible pressure with a small engine. Excellent for use on log splitters. 85% efficient. U.S.A.
* 3 3/8in. across mounting surface
* Minimum 8 HP or larger gas engine, direct drive only, horizontal shaft
* For use with open center hydraulic systems only
* First Stage: 16 GPM @ 650 PSI
* Second Stage: 3.5 GPM @ 2500 PSI
* Maximum pressure: 3000 PSI
* 4 holes spaced 2in. on center
