Hp agilent 6632A - system dc power supply 20V 5A 100W

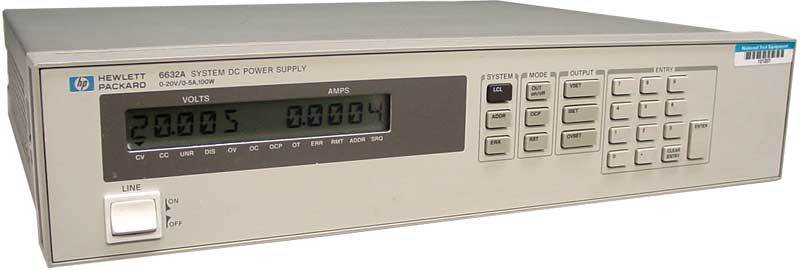

HP Agilent 6632A - System DC Power Supply 20V 5A 100W
The 6632A Power Supply is a 100 Watt, single output, series pass regulated supply is rated 20 V @ 5 A. Both the voltage and current output can be programmed for either CV or CC operation. A built-in DCM and precision current shunt measure (readback) the actual power supply output. The internal HP-IB interface allows for complete programmability, including status reporting and interrupt generation with user designated fault conditions.
* Data Sheet (07/00)
* Service Manual (03/05)
* Operations Guide (03/06)
* Users Guide (11/98)
