Kollmorgen servostar 600 as servo drive with profibus

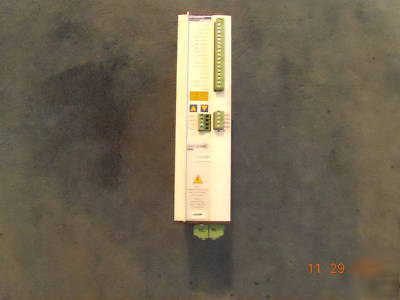

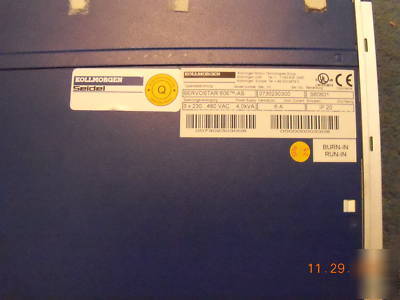

Danaher Motion / Kollmorgen ServoStar 606 AS with Profibus Expansion Card
Removed in working condition from retired equipment. OEM cables and motors are also available in separate sales.
Find full details at http:// /website/com/eng/products/drives/ac_servo_drives/s600.php
AS Option uses an additional connector to provide connections to a safety relay with positive-action contacts in the servo controller.

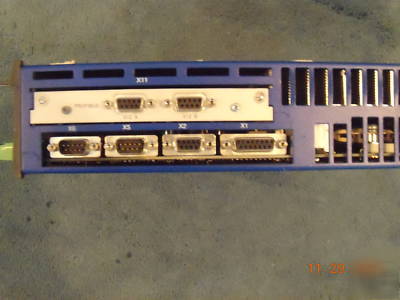

PROFIBUS DP expansion card included in this system.
* Operation directly from 230 to 480 VAC
* Output current 6A rms/phase continuous 12A peak.
* Setup from a PC using Kollmorgen setup software
* Interface integrated for stepper controllers, master-slave operation, electronic gearing
* Integrated position controller with memory for 255 motion tasks. Intelligent positioning tasks include:
- absolute and relative tasks
- several types of reference traverses
* Incremental or absolute encoder emulation
- Incremental or Sine Encoder with Halls
- Sine Encoder with EnDat/HIPERFACE/BISS
- Sine Encoder without Data
- Incremental Encoder A quad B
