Kramer sierra video 1608SXL 16X8 audio matrix switch

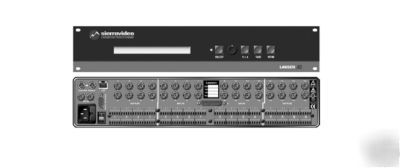

The Lassen XL16 series are high performance routing switchers for composite video signals. These units come in a compact 2U (3.5 ) frame and can be ordered with or without balanced stereo audio. They can route any or all inputs to any or all outputs.
LASSEN XL ANALOG (COMPOSITE) VIDEO FEATURES -
* High Bandwidth - 100MHz (- 3dB) fully loaded.
* Very Low Crosstalk - 80dB @ 1MHz, - 47dB @100MHz.
* Output Disconnect Feature
* Maximum Data Rates - 360Mbits/sec.
* Standards - SMPTE 310, SMPTE 259, DVB-ASI.
* Backwards compatible with SDI Signals
* Maximum Data Rates - 1.485Gbits/sec.
* Standards - SMPTE 310, SMPTE 259, SMPTE 292, DVB-ASI.
* Audio Type - Balanced or un-balanced on terminal blocks.
* No Zipper Effect - Lassen routing switchers employ zero crossover chip technology which eliminates the annoying zipper sound effect associated with digital volume controls.
* Crosstalk - 80dB @ 1kHz & 70dB @ 20kHz.
* Standards - Balanced AES/EBU.
RS-232/422 plus RS-485 for optional control panels.
* Redundant Power Supplies - Optional on 32x16 & 32x32 models.
