New hyd mech S20 bandsaw for structural cutting

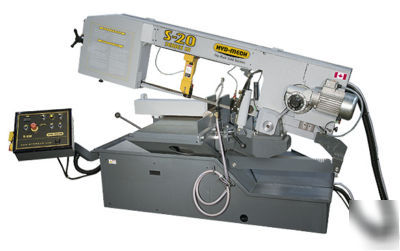

New equipment, discount price. Up for sale is a brand new Hyd-Mech S20 gravity feed bandsaw for structural cutting with warranty. We have taken delivery from the factory and are ready to find this big guy a new home. Would you like a demo? The saw is located in our shop and as always inspections and walk-ins are welcome. We are an authorized Hyd-Mech Dealer and service center and can answer your questions and help you choose the right equipment for your project, call us at 1 (***) 542 8559 or email ****@mesamachinery.com
* Robust steel base manufactured from heavy gauge plate and electro welded components, with a 6 gallon coolant tank built in. Includes leveling bolts.
* 36" in-feed rollers and 19" out-feed table.
* Easy swing, heavy duty cast iron saw head frame, with counter balance springs and easy to read scale for head position in 1 degree increments (90 to 30 degree mitering). A cam lock brake provides reliable locking at the desired angle.
* Premium 17-3/4" cast band wheels with flanged back.
* Powerful variable frequency drive 3HP motor with an A/C inverter provides infinitely variable band speed allowing for efficient cutting of various applications.
* Mechanical tensioning, with a digital readout at the control panel to ensure accurate blade tension. Machine will not operate unless proper band tension is applied.
* A centrifugal pump with wash down hose delivers ample coolant on the cutting area. The coolant flows through both drive and idler guide arms with flow valves for quantity adjustment.
* A swing away control console houses switches for blade start, band speed control, fast approach button, coolant control, a graduated feed rate valve, digital readout for blade tension, and an E-stop button. The swing arm allows for optimum ergonomic position.
Capacity 0 degree 13" round or 13"H x 18"W
Capacity 45 degree 12" round or 13"H x 10-3/4"W
Capacity 60 degree 8-1/2" round or 13"H x 7-3/4"W
Machine size 92"W x 75"L x 52"H
Check out the manufacturers website here: http://hydmech.com/index.php?option=com_content&task=view&id=27&Itemid=45
Watch it in action in our shop! Come see us for a demo of the unit. 1 (***) 542 8559
