Rebuild manual for bridgeport "j head" milling machine
A Guide to Renovating the Bridgeport Series 1 "J" Head Milling Machine
The subjects covered in the manual:
* Introduction and overview of the different Bridgeport models and features.
* Tips on evaluating, purchasing and moving a used Bridgeport.

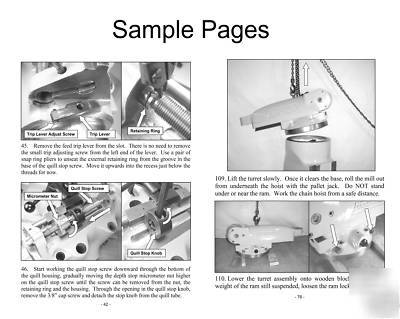

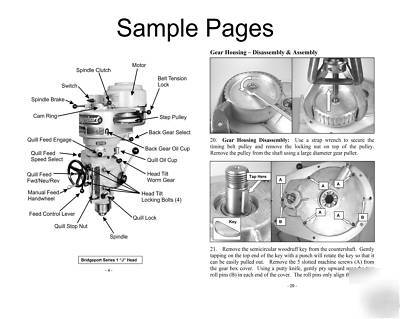

* Chapters on disassembly & assembly of the Motor, Belt Housing, Gear Housing and Quill assembly.
* Chapters on disassembly & assembly of the Ram, Table, Saddle, Knee and Base.
* Proper installation of angular contact bearings. (Spindle, Bull Gear and Pulley)
* Adjustment procedures for backlash in the table feeds.
* Hints and Tips for stripping and refinishing mills.
* Improvements to the table lubrication system and quill lock.
* List of materials and resources available for mill refurbishing.
* Parts sources and references for professional services which may be outside the scope of the manual.

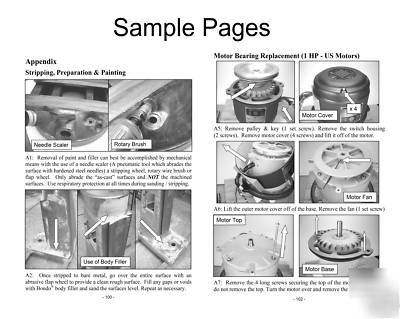

* Completely illustrated process for 1hp motor bearing replacement.
* Lubrication Instructions and lubricant references.
* Parts references and Mill Serial Number guides.
* If you have any questions, please don t hesitate to contact me. I will be happy to answer any questions.
* Thanks for your consideration.
